0039532205

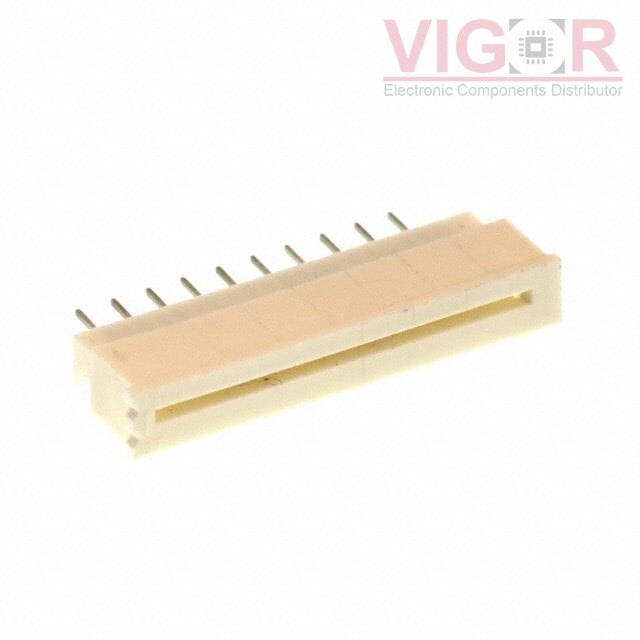

Product image
Product thumb
Part No :

0039532205

Manufacturer
Woodhead - Molex
VIGOR # :

3261521

Description
CONN FFC VERT 20POS 1.25MM PCB
Catalog
FFC, FPC (Flat Flexible) Connectors
DataSheet
0039532205 PDF
Country of origin
-
Date code
-
ads
0039532205 Specifications
Type Description
Series:5597
Package:Tray
Part Status:Active
Flat Flex Type:FFC, FPC
Mounting Type:Through Hole
Connector/Contact Type:Contacts, Vertical - 1 Sided
Number of Positions:20
Pitch:0.049" (1.25mm)
Termination:Solder
FFC, FCB Thickness:0.30mm
Height Above Board:0.295" (7.50mm)
Locking Feature:Slide Lock
Cable End Type:Straight
Contact Material:Phosphor Bronze
Contact Finish:Tin Bismuth
Housing Material:Polybutylene Terephthalate (PBT), Polyester
Actuator Material:Polybutylene Terephthalate (PBT), Polyester
Features:Zero Insertion Force (ZIF)
Voltage Rating:200V
Operating Temperature:-20°C ~ 80°C
Material Flammability Rating:UL94 V-0
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 1582
Shipped from
HK warehouse
Expected Shipping Date
Jan 01 - Jan 05 2025
Pricing(USD)
Quantity Unit Price Ext. Price
1 $1.62 $1.62
10 $1.47 $14.67
25 $1.38 $34.43
50 $1.32 $65.87
100 $1.26 $125.75
250 $1.14 $284.42
700 $1.05 $733.53
1400 $0.90 $1 257.47
2800 $0.84 $2 347.27

Current price of 0039532205 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
