687122182122

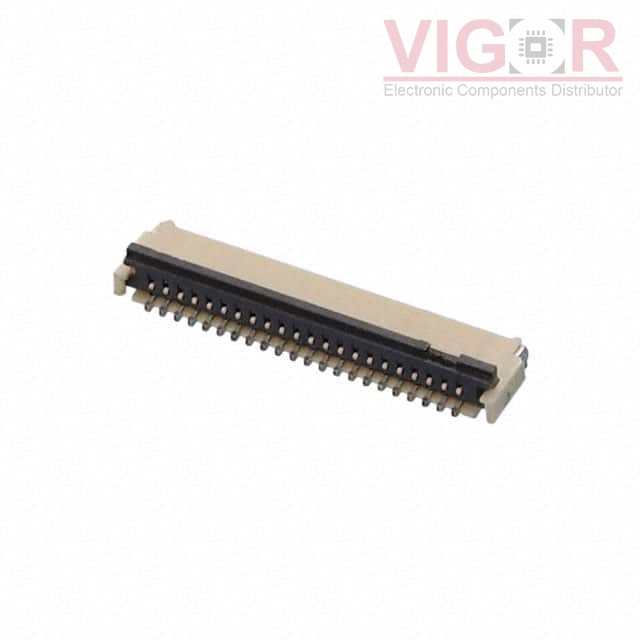

Image is for reference,
please contact us to get the real picture

Part No :: 687122182122

Manufacturer: Würth Elektronik Midcom

Description: CONN FFC FPC 22POS 0.5MM R/A

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: 687122182122 PDF

Availability: 200 pieces

Unit Price: ~~$2.31000~~

Current price of 687122182122 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

687122182122 Specifications

Type	Description
Series:	WR-FPC
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Flat Flex Type:	FFC, FPC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Top and Bottom
Number of Positions:	22
Pitch:	0.020" (0.50mm)
Termination:	Solder
FFC, FCB Thickness:	0.31mm
Height Above Board:	0.037" (0.95mm)
Locking Feature:	Flip Lock, Backlock
Cable End Type:	Tapered
Contact Material:	Phosphor Bronze
Contact Finish:	Tin
Housing Material:	Liquid Crystal Polymer (LCP)
Actuator Material:	Polyamide (PA9T), Nylon 9T
Features:	Solder Retention
Voltage Rating:	50V
Operating Temperature:	-55°C ~ 85°C
Material Flammability Rating:	UL94 V-0
