046284016002846+

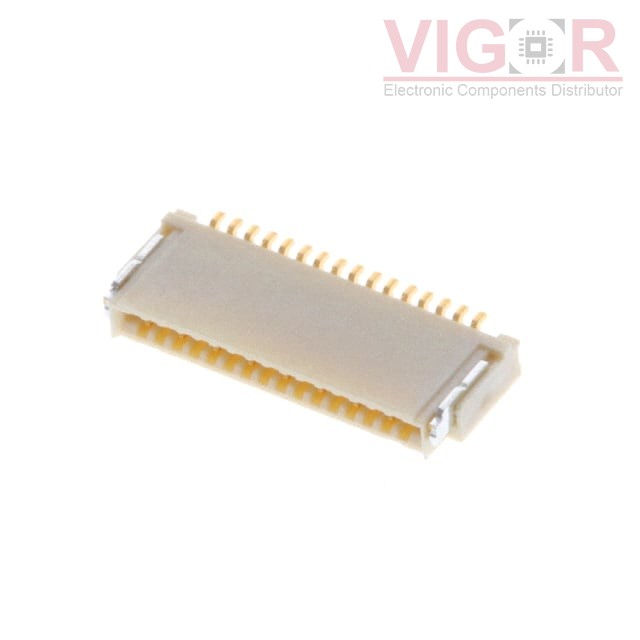

Image is for reference,
please contact us to get the real picture

Part No :: 046284016002846+

Manufacturer: KYOCERA Corporation

Description: 0.5MM PITCH - 16 POS - RT ANGLE

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: 046284016002846+ PDF

Availability: 3965 pieces

Unit Price: ~~$0.79000~~

Current price of 046284016002846+ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

046284016002846+ Specifications

Type	Description
Series:	6284, Kyocera
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Flat Flex Type:	FFC, FPC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Top and Bottom
Number of Positions:	16
Pitch:	0.020" (0.50mm)
Termination:	Solder
FFC, FCB Thickness:	0.30mm
Height Above Board:	0.059" (1.50mm)
Locking Feature:	-
Cable End Type:	Tapered
Contact Material:	Copper Alloy
Contact Finish:	Gold
Housing Material:	Plastic
Actuator Material:	-
Features:	Low Insertion Force (LIF), Solder Retention
Voltage Rating:	50V
Operating Temperature:	-40°C ~ 85°C
Material Flammability Rating:	-

Please confirm the specifications of the products when ordering.
