5033202560

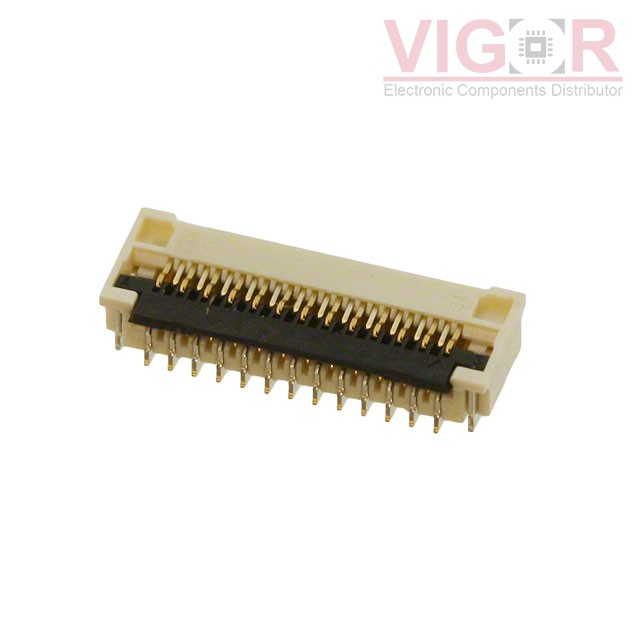

Image is for reference,
please contact us to get the real picture

Part No :: 5033202560

Manufacturer: Woodhead - Molex

Description: CONN FPC BOTTOM 25POS 0.25MM R/A

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: 5033202560 PDF

Availability: 0 pieces

Unit Price: ~~$0.94952~~

Current price of 5033202560 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

5033202560 Specifications

Type	Description
Series:	Easy-On 503320
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Flat Flex Type:	FPC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Bottom
Number of Positions:	25
Pitch:	0.010" (0.25mm)
Termination:	Solder
FFC, FCB Thickness:	0.20mm
Height Above Board:	-
Locking Feature:	Flip Lock
Cable End Type:	Tapered
Contact Material:	Copper Alloy
Contact Finish:	Gold
Housing Material:	Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material:	Polyamide (PA), Nylon, Glass Filled
Features:	Solder Retention
Voltage Rating:	50V
Operating Temperature:	-40°C ~ 85°C
Material Flammability Rating:	UL94 V-0, UL94 HB
