1-84533-6

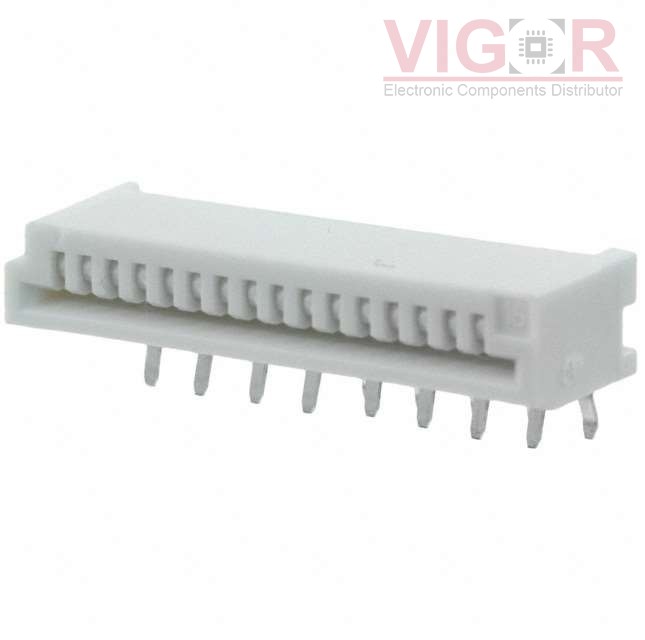

Image is for reference,
please contact us to get the real picture

Part No :: 1-84533-6

Manufacturer: TE Connectivity AMP Connectors

Description: CONN FFC TOP 16POS 1.25MM R/A

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: 1-84533-6 PDF

Availability: 0 pieces

Unit Price: ~~$0.30723~~

Current price of 1-84533-6 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

1-84533-6 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Flat Flex Type:	FFC
Mounting Type:	Through Hole, Right Angle
Connector/Contact Type:	Contacts, Top
Number of Positions:	16
Pitch:	0.049" (1.25mm)
Termination:	Kinked Pin
FFC, FCB Thickness:	0.30mm
Height Above Board:	0.189" (4.80mm)
Locking Feature:	-
Cable End Type:	Tapered
Contact Material:	Phosphor Bronze
Contact Finish:	Tin
Housing Material:	Polybutylene Terephthalate (PBT), Glass Filled
Actuator Material:	-
Features:	-
Voltage Rating:	50V
Operating Temperature:	-40°C ~ 85°C
Material Flammability Rating:	-
