TF46-60S-0.5SH(800)

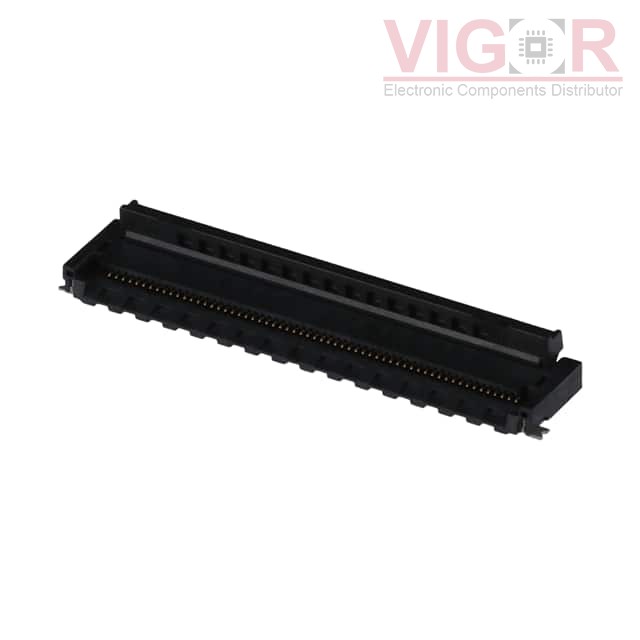

Image is for reference,
please contact us to get the real picture

Part No :: TF46-60S-0.5SH(800)

Manufacturer: Hirose

Description: CONN FFC/FPC 0.5MM SMD 60POS

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: TF46-60S-0.5SH(800) PDF

Availability: 1360 pieces

Unit Price: ~~$3.15000~~

Current price of TF46-60S-0.5SH(800) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TF46-60S-0.5SH(800) Specifications

Type	Description
Series:	TF46
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Flat Flex Type:	FFC, FPC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Top and Bottom
Number of Positions:	60
Pitch:	0.020" (0.50mm)
Termination:	Solder
FFC, FCB Thickness:	0.30mm
Height Above Board:	0.087" (2.20mm)
Locking Feature:	Flip Lock, Backlock
Cable End Type:	Tabbed
Contact Material:	Copper Alloy
Contact Finish:	Gold
Housing Material:	Liquid Crystal Polymer (LCP)
Actuator Material:	Liquid Crystal Polymer (LCP)
Features:	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating:	50V
Operating Temperature:	-40°C ~ 105°C
Material Flammability Rating:	UL94 V-0
