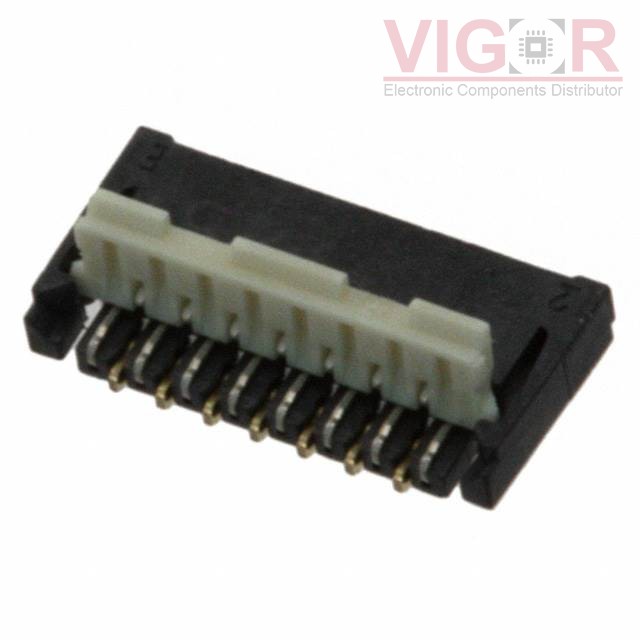

AYF331535A

Part No :: AYF331535A

Manufacturer: Panasonic

VIGOR # :: 3262184

Description: CONN FPC 15POS 0.30MM R/A

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: AYF331535A PDF

Country of origin: -

Date code: -

AYF331535A Specifications

Type	Description
Series:	Y3B
Package:	Strip
Part Status:	Active
Flat Flex Type:	FPC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Top and Bottom
Number of Positions:	15
Pitch:	0.012" (0.30mm)
Termination:	Solder
FFC, FCB Thickness:	0.20mm
Height Above Board:	0.035" (0.88mm)
Locking Feature:	Flip Lock, Backlock
Cable End Type:	Tapered
Contact Material:	Copper Alloy
Contact Finish:	Gold
Housing Material:	Liquid Crystal Polymer (LCP)
Actuator Material:	Liquid Crystal Polymer (LCP)
Features:	-
Voltage Rating:	50V
Operating Temperature:	-55°C ~ 85°C
Material Flammability Rating:	UL94 V-0

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Aug 10 - Aug 14 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.5220~~	~~$0.52~~
500	~~$0.5220~~	~~$261.00~~

Current price of AYF331535A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

F305-1A7H1-11060-E100

FLEX CONNECTOR, 0.50MM PITCH, HE

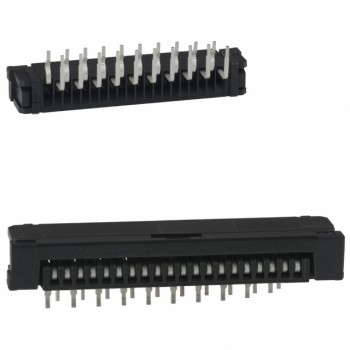

SLW20R-1C7LF
