686124183822

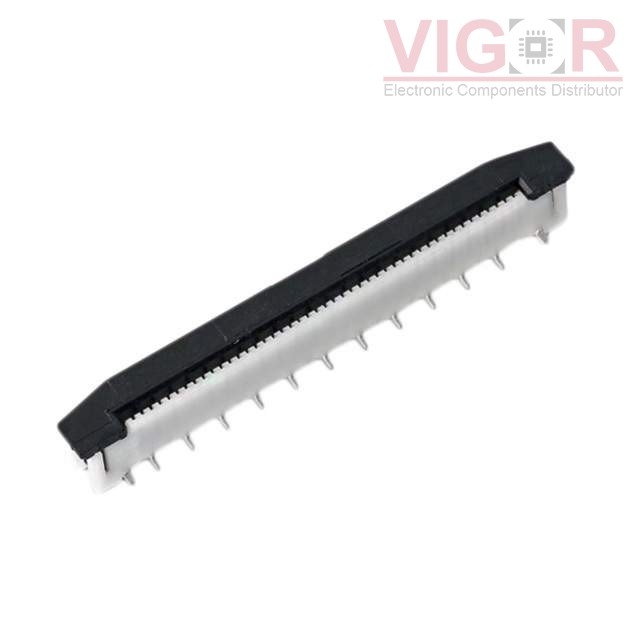

Image is for reference,
please contact us to get the real picture

Part No :: 686124183822

Manufacturer: Würth Elektronik Midcom

Description: CONN FFC VERT 24POS 1MM SMD

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: 686124183822 PDF

Availability: 958 pieces

Unit Price: ~~$2.25000~~

Current price of 686124183822 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

686124183822 Specifications

Type	Description
Series:	WR-FPC
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Flat Flex Type:	FFC
Mounting Type:	Surface Mount
Connector/Contact Type:	Contacts, Vertical - 2 Sided
Number of Positions:	24
Pitch:	0.039" (1.00mm)
Termination:	Solder
FFC, FCB Thickness:	0.30mm
Height Above Board:	0.128" (3.25mm)
Locking Feature:	Slide Lock
Cable End Type:	Straight
Contact Material:	Phosphor Bronze
Contact Finish:	Tin
Housing Material:	Polyamide (PA6T), Nylon 6T
Actuator Material:	Polyamide (PA6T), Nylon 6T
Features:	Zero Insertion Force (ZIF)
Voltage Rating:	-
Operating Temperature:	-25°C ~ 85°C
Material Flammability Rating:	UL94 V-0
