687116183722

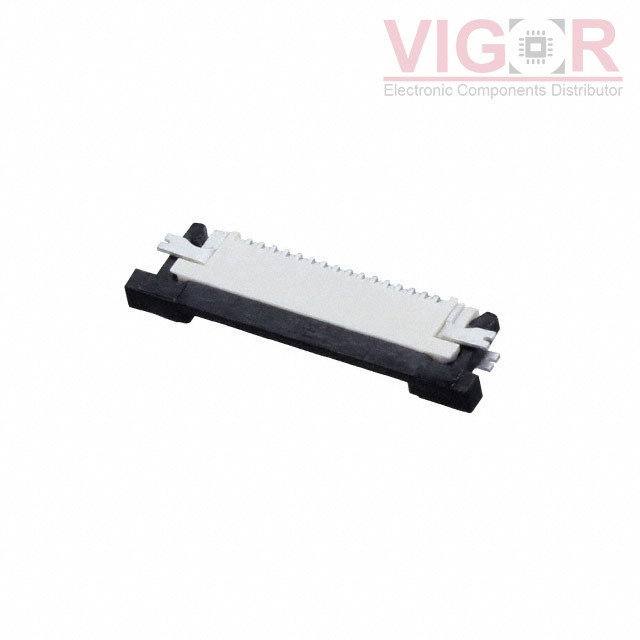

Image is for reference,
please contact us to get the real picture

Part No :: 687116183722

Manufacturer: Würth Elektronik Midcom

Description: CONN FFC BTM 16POS 0.5MM SMD R/A

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: 687116183722 PDF

Availability: 2042 pieces

Unit Price: ~~$1.98000~~

Current price of 687116183722 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

687116183722 Specifications

Type	Description
Series:	WR-FPC
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Flat Flex Type:	FFC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Bottom
Number of Positions:	16
Pitch:	0.020" (0.50mm)
Termination:	Solder
FFC, FCB Thickness:	0.30mm
Height Above Board:	0.047" (1.20mm)
Locking Feature:	Flip Lock
Cable End Type:	Straight
Contact Material:	Phosphor Bronze
Contact Finish:	Tin
Housing Material:	Liquid Crystal Polymer (LCP)
Actuator Material:	Polyamide (PA6T), Nylon 6T
Features:	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating:	-
Operating Temperature:	-25°C ~ 85°C
Material Flammability Rating:	UL94 V-0

Please confirm the specifications of the products when ordering.
