SFW16R-2STE1LF

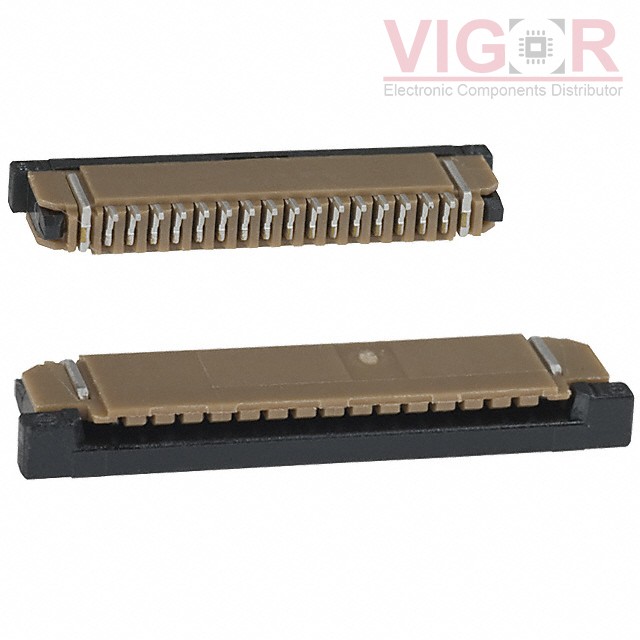

Image is for reference,
please contact us to get the real picture

Part No :: SFW16R-2STE1LF

Manufacturer: Storage & Server IO (Amphenol ICC)

Description: CONN FFC FPC TOP 16POS 1MM R/A

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: SFW16R-2STE1LF PDF

Availability: 4230 pieces

Unit Price: ~~$0.83000~~

Current price of SFW16R-2STE1LF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SFW16R-2STE1LF Specifications

Type	Description
Series:	SFW-R
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Flat Flex Type:	FFC, FPC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Top
Number of Positions:	16
Pitch:	0.039" (1.00mm)
Termination:	Solder
FFC, FCB Thickness:	0.30mm, 0.33mm
Height Above Board:	0.106" (2.70mm)
Locking Feature:	Slide Lock
Cable End Type:	Straight, Tapered
Contact Material:	Phosphor Bronze
Contact Finish:	Tin
Housing Material:	Polyphenylene Sulfide (PPS), Glass Filled
Actuator Material:	Polyphenylene Sulfide (PPS), Glass Filled
Features:	Zero Insertion Force (ZIF)
Voltage Rating:	100V
Operating Temperature:	-55°C ~ 105°C
Material Flammability Rating:	UL94 V-0

Please confirm the specifications of the products when ordering.
