5051470390

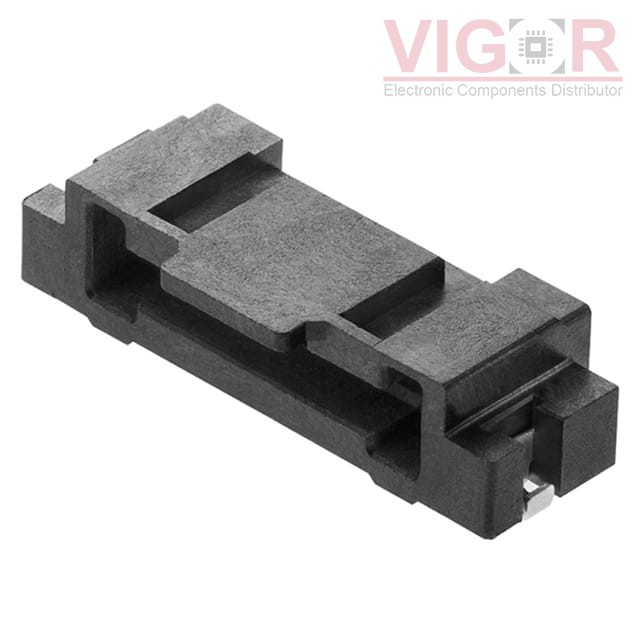

Image is for reference,
please contact us to get the real picture

Part No :: 5051470390

Manufacturer: Woodhead - Molex

Description: CONN FPC BOTTOM 3POS 2MM SMD R/A

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: 5051470390 PDF

Availability: 2284 pieces

Unit Price: ~~$0.76000~~

Current price of 5051470390 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

5051470390 Specifications

Type	Description
Series:	Flexi-Latch 505147
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Flat Flex Type:	FPC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Bottom
Number of Positions:	3
Pitch:	0.079" (2.00mm)
Termination:	Solder
FFC, FCB Thickness:	0.30mm
Height Above Board:	0.191" (4.85mm)
Locking Feature:	-
Cable End Type:	Tapered
Contact Material:	Copper Alloy
Contact Finish:	Gold
Housing Material:	Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material:	-
Features:	Solder Retention
Voltage Rating:	50V
Operating Temperature:	-40°C ~ 125°C
Material Flammability Rating:	UL94 V-0

Please confirm the specifications of the products when ordering.
