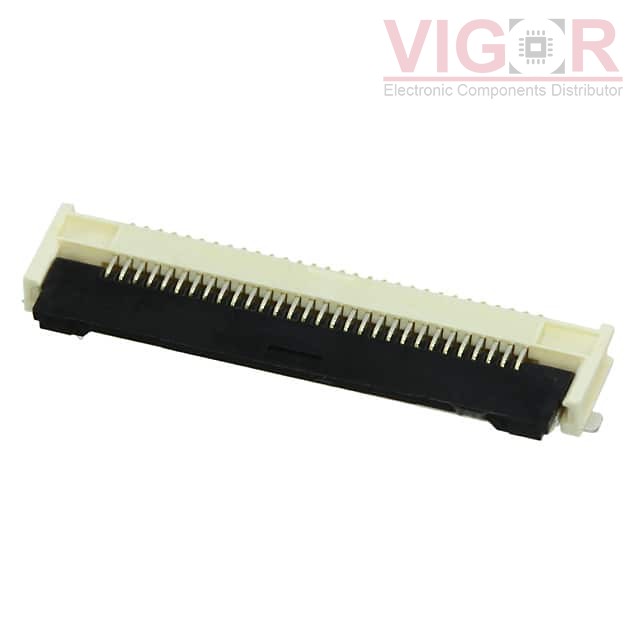

5051103091

Part No :: 5051103091

Manufacturer: Woodhead - Molex

VIGOR # :: 3262565

Description: CONN FFC/FPC BOTTOM 30P .5MM R/A

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: 5051103091 PDF

Current price of 5051103091 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

5051103091 Specifications

Type	Description
Series:	Easy-On FD19 505110
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Flat Flex Type:	FFC, FPC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Bottom
Number of Positions:	30
Pitch:	0.020" (0.50mm)
Termination:	Solder
FFC, FCB Thickness:	0.30mm
Height Above Board:	0.075" (1.90mm)
Locking Feature:	Flip Lock
Cable End Type:	Tabbed, Tapered
Contact Material:	Phosphor Bronze
Contact Finish:	Gold
Housing Material:	Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material:	Polyamide (PA), Nylon, Glass Filled
Features:	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating:	50V
Operating Temperature:	-40°C ~ 105°C
Material Flammability Rating:	UL94 V-0
