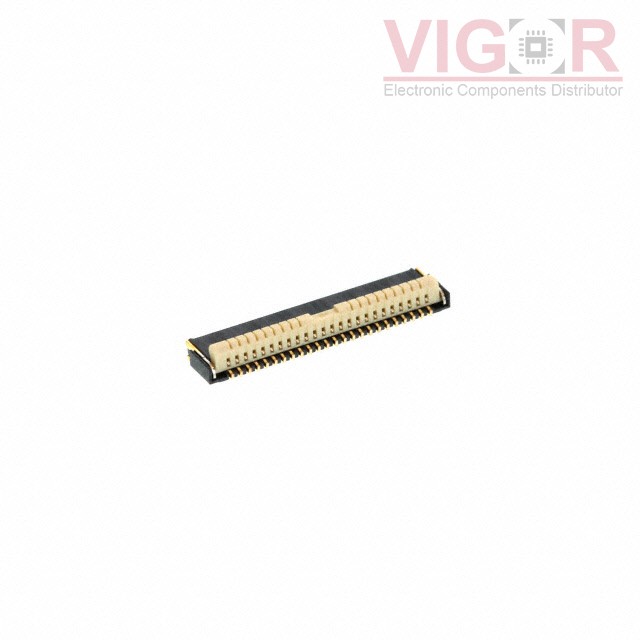

AYF532435A

Part No :: AYF532435A

Manufacturer: Panasonic

VIGOR # :: 3262819

Description: CONN FFC FPC 24POS 0.50MM R/A

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: AYF532435A PDF

Current price of AYF532435A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AYF532435A Specifications

Type	Description
Series:	Y5B
Package:	Strip
Part Status:	Active
Flat Flex Type:	FFC, FPC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Top and Bottom
Number of Positions:	24
Pitch:	0.020" (0.50mm)
Termination:	Solder
FFC, FCB Thickness:	0.30mm
Height Above Board:	0.039" (1.00mm)
Locking Feature:	Flip Lock, Backlock
Cable End Type:	Tapered
Contact Material:	Copper Alloy
Contact Finish:	Gold
Housing Material:	Liquid Crystal Polymer (LCP)
Actuator Material:	Liquid Crystal Polymer (LCP)
Features:	-
Voltage Rating:	50V
Operating Temperature:	-55°C ~ 85°C
Material Flammability Rating:	UL94 V-0
