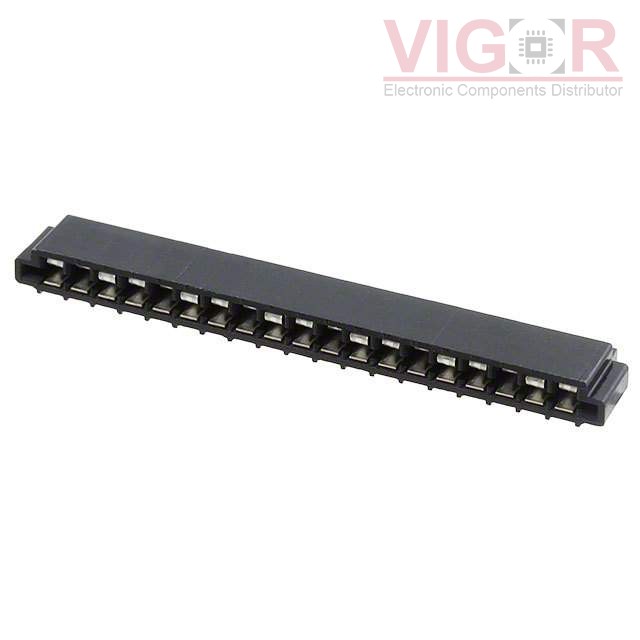

6-520314-9

Part No :: 6-520314-9

Manufacturer: TE Connectivity AMP Connectors

VIGOR # :: 3262955

Description: CONN FFC TOP 19POS 2.54MM R/A

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: 6-520314-9 PDF

Current price of 6-520314-9 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

6-520314-9 Specifications

Type	Description
Series:	Triomate
Package:	Tray
Part Status:	Active
Flat Flex Type:	FFC, FPC
Mounting Type:	Through Hole, Right Angle
Connector/Contact Type:	Contacts, Top
Number of Positions:	19
Pitch:	0.100" (2.54mm)
Termination:	Kinked Pin
FFC, FCB Thickness:	0.13mm ~ 0.38mm
Height Above Board:	0.190" (4.83mm)
Locking Feature:	-
Cable End Type:	Straight
Contact Material:	Phosphor Bronze
Contact Finish:	Tin
Housing Material:	Polyester Thermoplastic, Glass Filled
Actuator Material:	-
Features:	-
Voltage Rating:	250V
Operating Temperature:	-55°C ~ 105°C
Material Flammability Rating:	UL94 V-0

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Dec 23 - Dec 27 2025

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	$2.56000	$2.56
10	$2.31948	$23.1948
25	$2.17765	$54.44125
50	$2.08289	$104.1445
100	$1.98813	$198.813
300	$1.79881	$539.643
600	$1.65681	$994.086
1200	$1.42012	$1704.144
2700	$1.32544	$3578.688
