0522711169

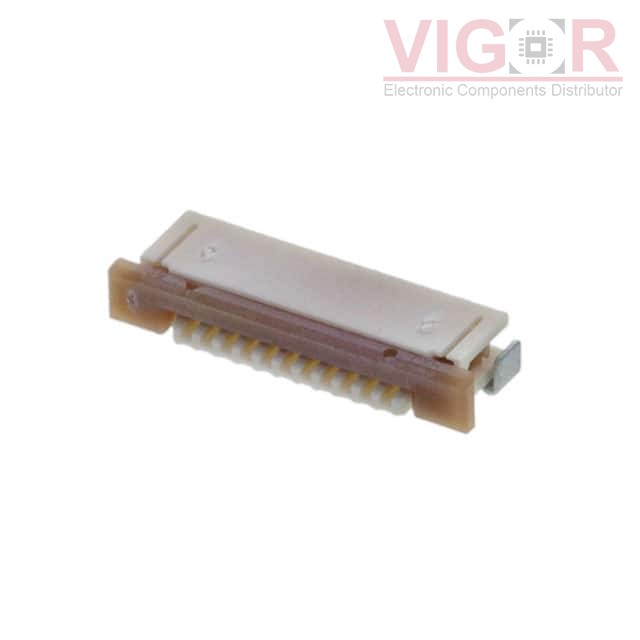

Image is for reference,
please contact us to get the real picture

Part No :: 0522711169

Manufacturer: Woodhead - Molex

Description: 10 FPCZIFSMTRABTMAU11CKTEMBSTPPK

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: 0522711169 PDF

Availability: 5013 pieces

Unit Price: ~~$1.35000~~

Current price of 0522711169 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

0522711169 Specifications

Type	Description
Series:	52271
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Flat Flex Type:	FPC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Bottom
Number of Positions:	11
Pitch:	0.039" (1.00mm)
Termination:	Solder
FFC, FCB Thickness:	0.30mm
Height Above Board:	0.118" (3.00mm)
Locking Feature:	Slide Lock
Cable End Type:	Tapered
Contact Material:	Phosphorus Bronze
Contact Finish:	Gold
Housing Material:	Polyamide (PA46), Nylon 4/6
Actuator Material:	Polyphenylene Sulfide (PPS)
Features:	Solder Retention, Top Load
Voltage Rating:	50V
Operating Temperature:	-40°C ~ 85°C
Material Flammability Rating:	UL94 V-0
