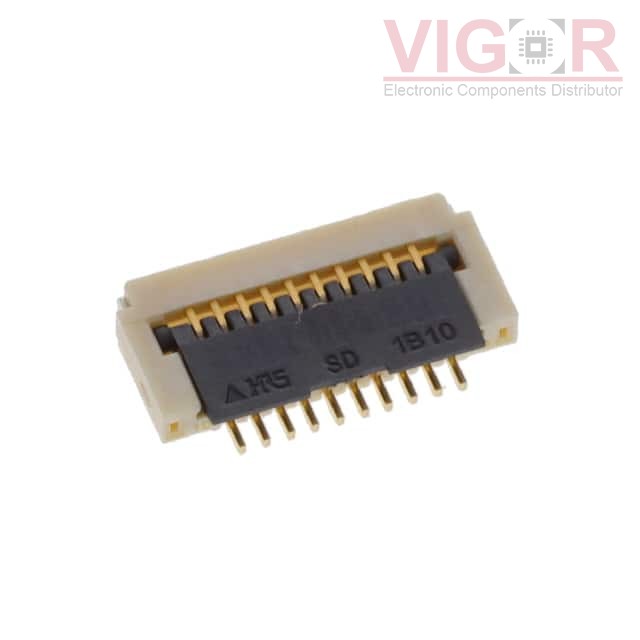

TF12SD-10S-0.5SH(800)

Part No :: TF12SD-10S-0.5SH(800)

Manufacturer: Hirose

VIGOR # :: 3263268

Description: CONN FFC 10POS 0.50MM

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: TF12SD-10S-0.5SH(800) PDF

Current price of TF12SD-10S-0.5SH(800) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TF12SD-10S-0.5SH(800) Specifications

Type	Description
Series:	TF12
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Flat Flex Type:	FPC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Bottom
Number of Positions:	10
Pitch:	0.020" (0.50mm)
Termination:	Solder
FFC, FCB Thickness:	0.20mm
Height Above Board:	0.039" (1.00mm)
Locking Feature:	Flip Lock, Backlock
Cable End Type:	Notched
Contact Material:	Phosphor Bronze
Contact Finish:	Gold
Housing Material:	Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material:	Polyphenylene Sulfide (PPS), Halogen Free
Features:	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating:	50V
Operating Temperature:	-55°C ~ 85°C
Material Flammability Rating:	UL94 V-0
