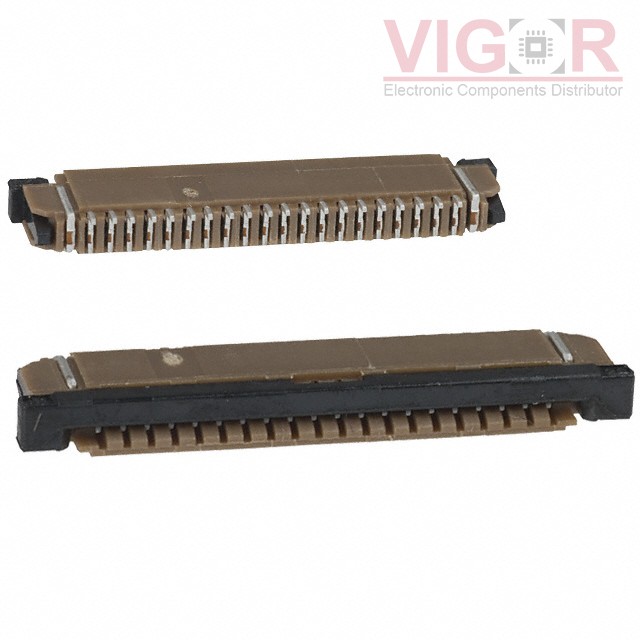

SFW20R-1STE1LF

Part No :: SFW20R-1STE1LF

Manufacturer: Storage & Server IO (Amphenol ICC)

VIGOR # :: 3263290

Description: CONN FFC BOTTOM 20POS 1.00MM R/A

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: SFW20R-1STE1LF PDF

Current price of SFW20R-1STE1LF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SFW20R-1STE1LF Specifications

Type	Description
Series:	SFW-R
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Flat Flex Type:	FFC, FPC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Bottom
Number of Positions:	20
Pitch:	0.039" (1.00mm)
Termination:	Solder
FFC, FCB Thickness:	0.30mm
Height Above Board:	0.106" (2.70mm)
Locking Feature:	Slide Lock
Cable End Type:	Straight
Contact Material:	Phosphor Bronze
Contact Finish:	Tin
Housing Material:	Polyphenylene Sulfide (PPS), Glass Filled
Actuator Material:	Polyphenylene Sulfide (PPS), Glass Filled
Features:	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating:	100V
Operating Temperature:	-55°C ~ 105°C
Material Flammability Rating:	UL94 V-0
