5022503991

5022503991

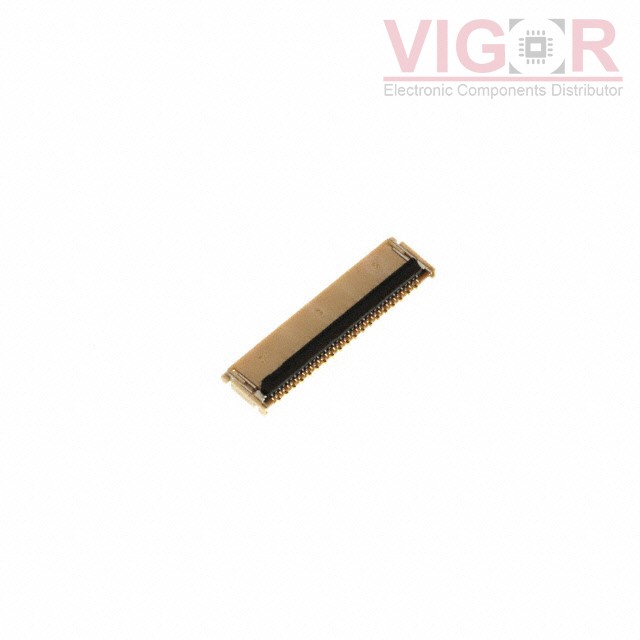

Image is for reference,
please contact us to get the real picture

Part No :

5022503991

Manufacturer
Woodhead - Molex
Description
CONN FPC 39POS 0.30MM R/A
Catalog
FFC, FPC (Flat Flexible) Connectors
Shipped from
HK warehouse
Expected Shipping Date
Oct 26 - Oct 30 2025
DataSheet
5022503991 PDF
Availability
2588 pieces
Unit Price
$3.40000

Current price of 5022503991 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

5022503991 Specifications
Type Description
Series:BackFlip, Easy-On 502250
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Flat Flex Type:FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Top and Bottom
Number of Positions:39
Pitch:0.012" (0.30mm)
Termination:Solder
FFC, FCB Thickness:0.20mm
Height Above Board:0.035" (0.88mm)
Locking Feature:Flip Lock, Backlock
Cable End Type:Notched or Tabbed
Contact Material:Copper Alloy
Contact Finish:Gold
Housing Material:Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material:Polyphenylene Sulfide (PPS), Glass Filled
Features:-
Voltage Rating:50V
Operating Temperature:-25°C ~ 85°C
Material Flammability Rating:UL94 V-0
