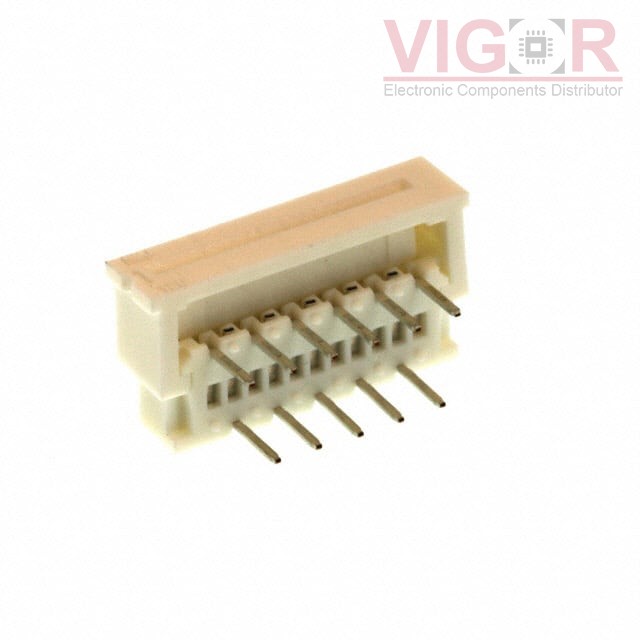

0039532114

Part No :: 0039532114

Manufacturer: Woodhead - Molex

VIGOR # :: 3263615

Description: CONN FFC TOP 11POS 1.25MM R/A

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: 0039532114 PDF

Current price of 0039532114 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

0039532114 Specifications

Type	Description
Series:	5597
Package:	Tray
Part Status:	Active
Flat Flex Type:	FFC, FPC
Mounting Type:	Through Hole, Right Angle
Connector/Contact Type:	Contacts, Top
Number of Positions:	11
Pitch:	0.049" (1.25mm)
Termination:	Solder
FFC, FCB Thickness:	0.30mm
Height Above Board:	0.213" (5.40mm)
Locking Feature:	Slide Lock
Cable End Type:	Straight
Contact Material:	Phosphor Bronze
Contact Finish:	Tin Bismuth
Housing Material:	Polybutylene Terephthalate (PBT), Polyester
Actuator Material:	Polybutylene Terephthalate (PBT), Polyester
Features:	Zero Insertion Force (ZIF)
Voltage Rating:	200V
Operating Temperature:	-20°C ~ 80°C
Material Flammability Rating:	UL94 V-0

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 937

Shipped from

HK warehouse

Expected Shipping Date

Dec 20 - Dec 24 2025

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	$3.58000	$3.58
10	$3.43842	$34.3842
25	$3.15202	$78.8005
50	$3.00862	$150.431
100	$2.86542	$286.542
250	$2.50725	$626.8125
900	$2.22070	$1998.63
1800	$2.00579	$3610.422
2700	$1.93415	$5222.205
