3-2328724-9

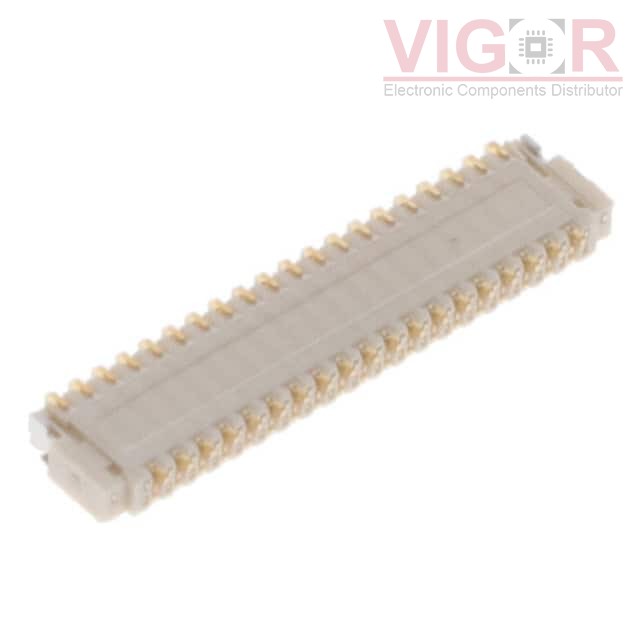

Image is for reference,
please contact us to get the real picture

Part No :: 3-2328724-9

Manufacturer: TE Connectivity AMP Connectors

Description: 0.3MM PITCH FRONT FLIP FPC, 39PO

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: 3-2328724-9 PDF

Availability: 18016 pieces

Unit Price: ~~$0.44000~~

Current price of 3-2328724-9 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

3-2328724-9 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Flat Flex Type:	FPC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Bottom
Number of Positions:	39
Pitch:	0.012" (0.30mm)
Termination:	Solder
FFC, FCB Thickness:	0.20mm
Height Above Board:	0.039" (1.00mm)
Locking Feature:	Flip Lock
Cable End Type:	Tapered
Contact Material:	Copper Alloy
Contact Finish:	Gold
Housing Material:	Thermoplastic
Actuator Material:	Thermoplastic
Features:	-
Voltage Rating:	30V
Operating Temperature:	-40°C ~ 85°C
Material Flammability Rating:	UL94 V-0

Please confirm the specifications of the products when ordering.
