TF06L-80S-0.5SH(800)

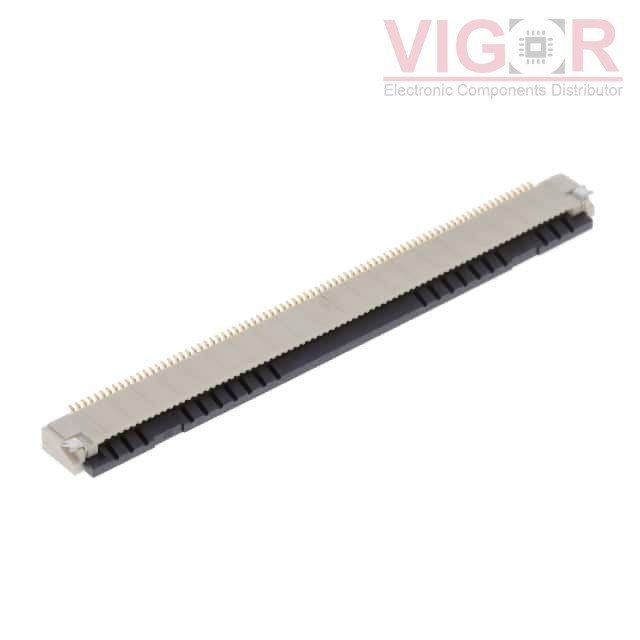

Image is for reference,
please contact us to get the real picture

Part No :: TF06L-80S-0.5SH(800)

Manufacturer: Hirose

Description: CONN FFC 80POS 0.50MM

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: TF06L-80S-0.5SH(800) PDF

Availability: 9746 pieces

Unit Price: ~~$2.38000~~

Current price of TF06L-80S-0.5SH(800) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TF06L-80S-0.5SH(800) Specifications

Type	Description
Series:	TF06L
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Flat Flex Type:	FFC, FPC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Bottom
Number of Positions:	80
Pitch:	0.020" (0.50mm)
Termination:	Solder
FFC, FCB Thickness:	0.30mm
Height Above Board:	0.083" (2.10mm)
Locking Feature:	Flip Lock
Cable End Type:	Tabbed
Contact Material:	Phosphor Bronze
Contact Finish:	Gold
Housing Material:	Liquid Crystal Polymer (LCP)
Actuator Material:	Liquid Crystal Polymer (LCP)
Features:	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating:	50V
Operating Temperature:	-40°C ~ 85°C
Material Flammability Rating:	UL94 V-0

Please confirm the specifications of the products when ordering.
