AYF332535A

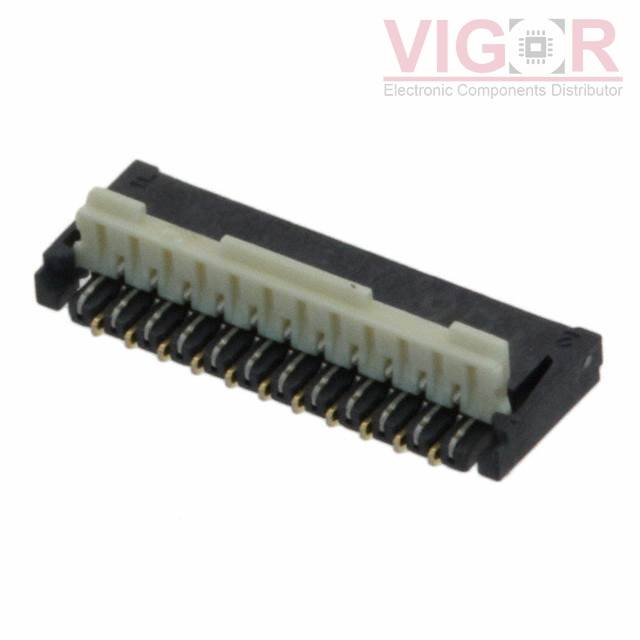

Image is for reference,
please contact us to get the real picture

Part No :: AYF332535A

Manufacturer: Panasonic

Description: CONN FPC 25POS 0.30MM R/A

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: AYF332535A PDF

Availability: 2167 pieces

Unit Price: ~~$1.36000~~

Current price of AYF332535A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AYF332535A Specifications

Type	Description
Series:	Y3B
Package:	Strip
Part Status:	Active
Flat Flex Type:	FPC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Top and Bottom
Number of Positions:	25
Pitch:	0.012" (0.30mm)
Termination:	Solder
FFC, FCB Thickness:	0.20mm
Height Above Board:	0.035" (0.88mm)
Locking Feature:	Flip Lock, Backlock
Cable End Type:	Tapered
Contact Material:	Copper Alloy
Contact Finish:	Gold
Housing Material:	Liquid Crystal Polymer (LCP)
Actuator Material:	Liquid Crystal Polymer (LCP)
Features:	-
Voltage Rating:	50V
Operating Temperature:	-55°C ~ 85°C
Material Flammability Rating:	UL94 V-0
