0522072633

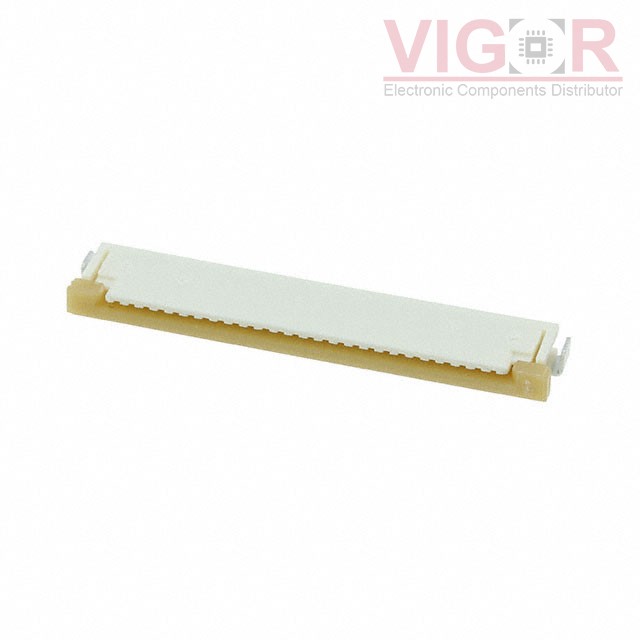

Product image
Product thumb
Part No :

0522072633

Manufacturer
Woodhead - Molex
VIGOR # :

3263828

Description
CONN FFC FPC TOP 26POS 1MM R/A
Catalog
FFC, FPC (Flat Flexible) Connectors
DataSheet
0522072633 PDF
Country of origin
-
Date code
-
ads
0522072633 Specifications
Type Description
Series:Easy-On 52207
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Flat Flex Type:FFC, FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Top
Number of Positions:26
Pitch:0.039" (1.00mm)
Termination:Solder
FFC, FCB Thickness:0.30mm
Height Above Board:0.106" (2.70mm)
Locking Feature:Slide Lock
Cable End Type:Tapered
Contact Material:Phosphor Bronze
Contact Finish:Tin Bismuth
Housing Material:Polyamide (PA), Nylon, Glass Filled
Actuator Material:Polyphenylene Sulfide (PPS)
Features:Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating:125V
Operating Temperature:-40°C ~ 85°C
Material Flammability Rating:UL94 V-0
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 2385
Shipped from
HK warehouse
Expected Shipping Date
Dec 31 - Jan 04 2025
Pricing(USD)
Quantity Unit Price Ext. Price
1 $2.43 $2.43
1000 $1.29 $1 287.45
2000 $1.24 $2 489.08
3000 $1.20 $3 604.86
5000 $1.14 $5 707.70

Current price of 0522072633 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
2005280170

2005280170

1.0 FPC ZIF BTM CONT EMBT PKG 17

XF2M-5515-1AH

XF2M-5515-1AH

CONN FPC 55POS 0.50MM R/A

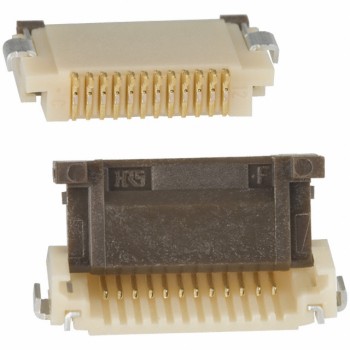

FH12-12S-0.5SH(54)
