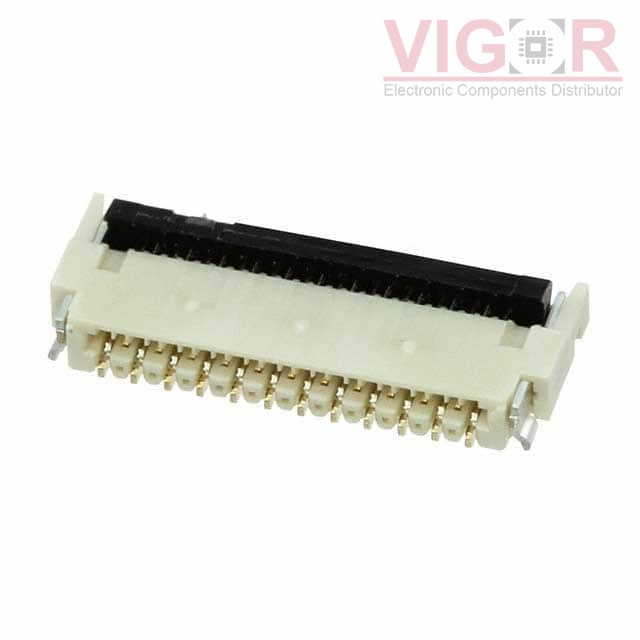

5025982393

Part No :: 5025982393

Manufacturer: Woodhead - Molex

VIGOR # :: 3263856

Description: CONN FPC 23POS 0.30MM R/A

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: 5025982393 PDF

Current price of 5025982393 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

5025982393 Specifications

Type	Description
Series:	BackFlip, Easy-On 502598
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Flat Flex Type:	FPC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Top and Bottom
Number of Positions:	23
Pitch:	0.012" (0.30mm)
Termination:	Solder
FFC, FCB Thickness:	0.20mm
Height Above Board:	0.045" (1.14mm)
Locking Feature:	Flip Lock, Backlock
Cable End Type:	Tapered
Contact Material:	Phosphor Bronze
Contact Finish:	Gold
Housing Material:	Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material:	Polyamide (PA), Nylon, Glass Filled
Features:	Solder Retention
Voltage Rating:	50V
Operating Temperature:	-40°C ~ 85°C
Material Flammability Rating:	UL94 V-0, UL94 HB
