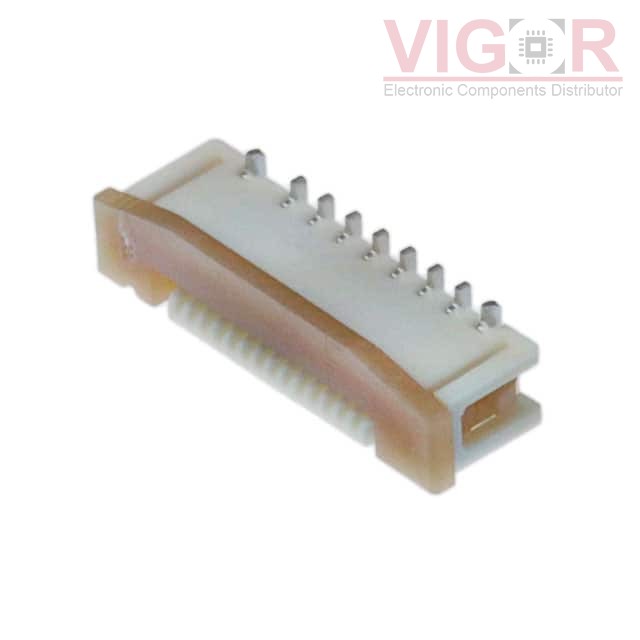

0525591433

Part No :: 0525591433

Manufacturer: Woodhead - Molex

VIGOR # :: 3263874

Description: CONN FFC VERT 14POS 0.50MM SMD

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: 0525591433 PDF

Current price of 0525591433 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

0525591433 Specifications

Type	Description
Series:	Easy-On 52559
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Flat Flex Type:	FFC, FPC
Mounting Type:	Surface Mount
Connector/Contact Type:	Contacts, Vertical - 1 Sided
Number of Positions:	14
Pitch:	0.020" (0.50mm)
Termination:	Solder
FFC, FCB Thickness:	0.30mm
Height Above Board:	0.154" (3.90mm)
Locking Feature:	Slide Lock
Cable End Type:	Straight, Tapered
Contact Material:	Copper Alloy
Contact Finish:	Tin Bismuth
Housing Material:	Polyamide (PA), Nylon, Glass Filled
Actuator Material:	Polyphenylene Sulfide (PPS), Glass Filled
Features:	Zero Insertion Force (ZIF)
Voltage Rating:	50V
Operating Temperature:	-40°C ~ 85°C
Material Flammability Rating:	UL94 V-0
