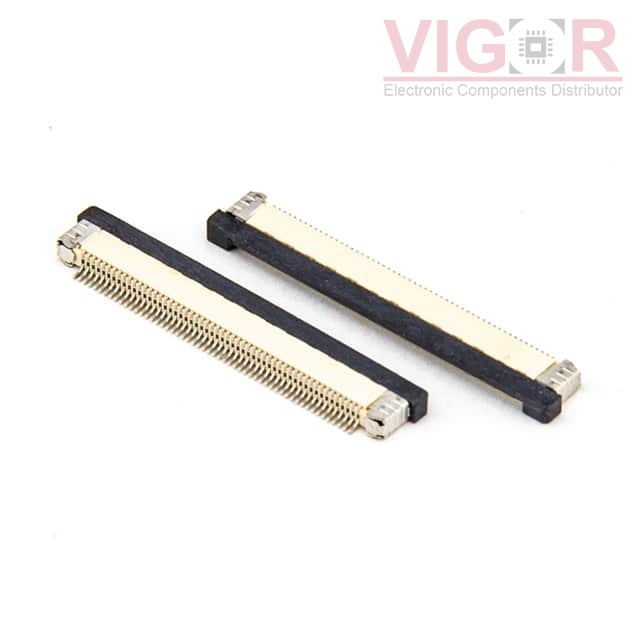

2345-C30TD2T

Part No :: 2345-C30TD2T

Manufacturer: Oupiin

VIGOR # :: 3263901

Description: FFC/FPC SOCKET, .5MM PITCH, 30 P

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: 2345-C30TD2T PDF

Current price of 2345-C30TD2T is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

2345-C30TD2T Specifications

Type	Description
Series:	2345-C
Package:	Tape & Reel (TR)
Part Status:	Active
Flat Flex Type:	FFC, FPC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Bottom
Number of Positions:	30
Pitch:	0.020" (0.50mm)
Termination:	Solder
FFC, FCB Thickness:	0.30mm
Height Above Board:	0.079" (2.00mm)
Locking Feature:	Slide Lock
Cable End Type:	Straight
Contact Material:	Phosphor Bronze
Contact Finish:	Tin
Housing Material:	Liquid Crystal Polymer (LCP)
Actuator Material:	Liquid Crystal Polymer (LCP)
Features:	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating:	50V
Operating Temperature:	-45°C ~ 85°C
Material Flammability Rating:	UL94 V-0
