5020781360

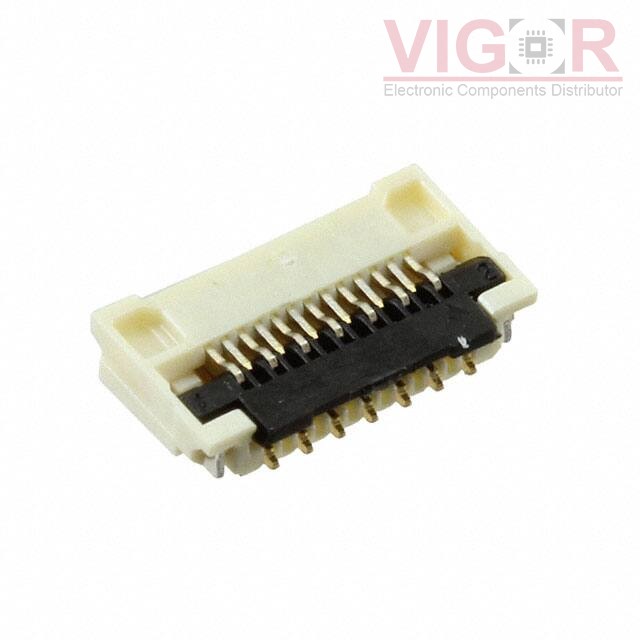

Product image
Product thumb
Part No :

5020781360

Manufacturer
Woodhead - Molex
VIGOR # :

3263927

Description
CONN FPC BOTTOM 13POS 0.25MM R/A
Catalog
FFC, FPC (Flat Flexible) Connectors
DataSheet
5020781360 PDF
Availability
1146 pieces
Unit Price
$1.31000

Current price of 5020781360 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

5020781360 Specifications
Type Description
Series:Easy-On 502078
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Flat Flex Type:FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Bottom
Number of Positions:13
Pitch:0.010" (0.25mm)
Termination:Solder
FFC, FCB Thickness:0.20mm
Height Above Board:0.039" (1.00mm)
Locking Feature:Flip Lock
Cable End Type:Tapered
Contact Material:Phosphor Bronze
Contact Finish:Gold
Housing Material:Liquid Crystal Polymer (LCP)
Actuator Material:Polyamide (PA), Nylon
Features:-
Voltage Rating:50V
Operating Temperature:-20°C ~ 85°C
Material Flammability Rating:UL94 V-0, UL94 HB
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 1146
Shipped from
HK warehouse
Expected Shipping Date
Dec 23 - Dec 27 2025
Pricing(USD)
Quantity Unit Price Ext. Price
1 $1.31000 $1.31
3000 $0.65381 $1961.43
6000 $0.63126 $3787.56
9000 $0.59970 $5397.3
15000 $0.58617 $8792.55
