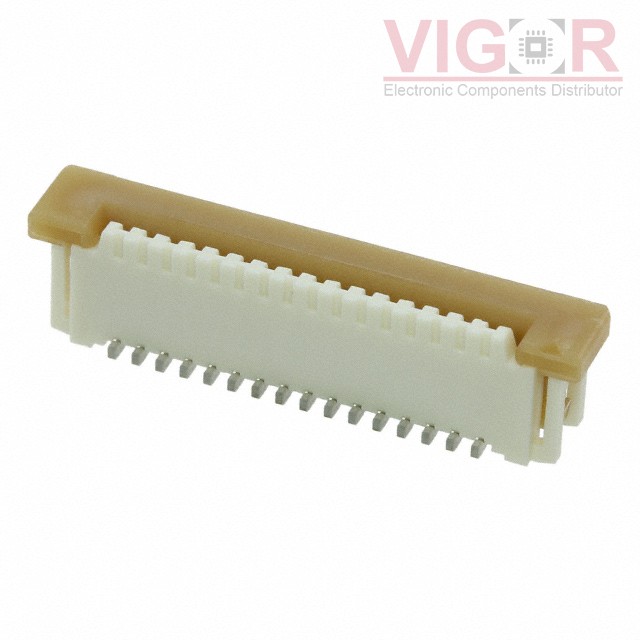

0526101633

Part No :: 0526101633

Manufacturer: Woodhead - Molex

VIGOR # :: 3263955

Description: CONN FPC VERT 16POS 1.00MM SMD

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: 0526101633 PDF

Current price of 0526101633 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

0526101633 Specifications

Type	Description
Series:	Easy-On 52610
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Flat Flex Type:	FPC
Mounting Type:	Surface Mount
Connector/Contact Type:	Contacts, Vertical - 1 Sided
Number of Positions:	16
Pitch:	0.039" (1.00mm)
Termination:	Solder
FFC, FCB Thickness:	0.30mm
Height Above Board:	0.226" (5.74mm)
Locking Feature:	Slide Lock
Cable End Type:	Tapered
Contact Material:	Phosphor Bronze
Contact Finish:	Tin Bismuth
Housing Material:	Polyamide (PA), Nylon, Glass Filled
Actuator Material:	Polyphenylene Sulfide (PPS), Glass Filled
Features:	Zero Insertion Force (ZIF)
Voltage Rating:	125V
Operating Temperature:	-40°C ~ 85°C
Material Flammability Rating:	UL94 V-0
