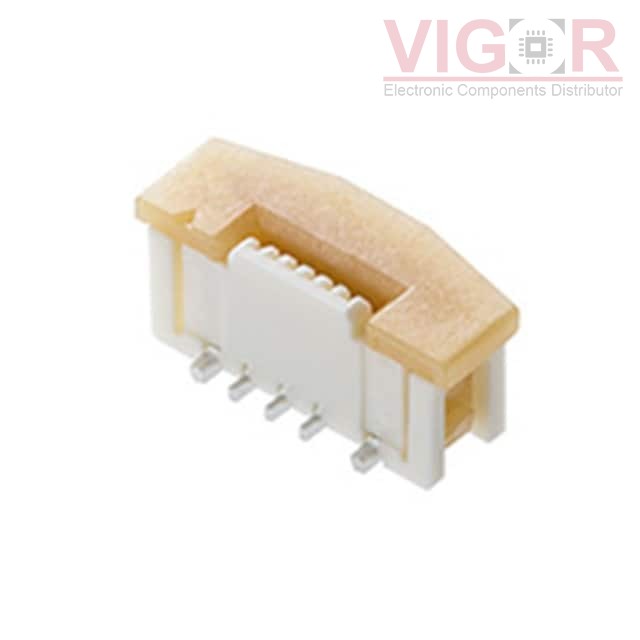

0525592534

Part No :: 0525592534

Manufacturer: Woodhead - Molex

VIGOR # :: 3264078

Description: CONN FFC VERT 25POS 0.50MM SMD

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: 0525592534 PDF

Country of origin: -

Date code: -

0525592534 Specifications

Type	Description
Series:	Easy-On 52559
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Flat Flex Type:	FFC, FPC
Mounting Type:	Surface Mount
Connector/Contact Type:	Contacts, Vertical - 1 Sided
Number of Positions:	25
Pitch:	0.020" (0.50mm)
Termination:	Solder
FFC, FCB Thickness:	0.30mm
Height Above Board:	0.154" (3.90mm)
Locking Feature:	Slide Lock
Cable End Type:	Straight, Tapered
Contact Material:	Copper Alloy
Contact Finish:	Tin Bismuth
Housing Material:	Polyamide (PA), Nylon, Glass Filled
Actuator Material:	Polyphenylene Sulfide (PPS), Glass Filled
Features:	Zero Insertion Force (ZIF)
Voltage Rating:	50V
Operating Temperature:	-40°C ~ 85°C
Material Flammability Rating:	UL94 V-0

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 2377

Shipped from

HK warehouse

Expected Shipping Date

Apr 08 - Apr 12 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$2.6500~~	~~$2.65~~
1000	~~$1.4727~~	~~$1 472.70~~
2000	~~$1.4236~~	~~$2 847.22~~
3000	~~$1.3745~~	~~$4 123.56~~
5000	~~$1.3058~~	~~$6 528.95~~

Current price of 0525592534 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

FH33-28S-0.5SH(10)

CONN FFC BOTTOM 28POS 0.50MM R/A

40FLZ-RSM2-R-TB(LF)(SN)

CONN FFC BOTTOM 40POS 0.50MM R/A

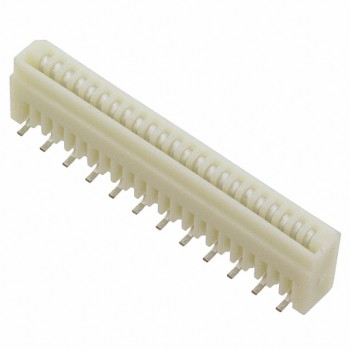

2-84982-3
