0512811694

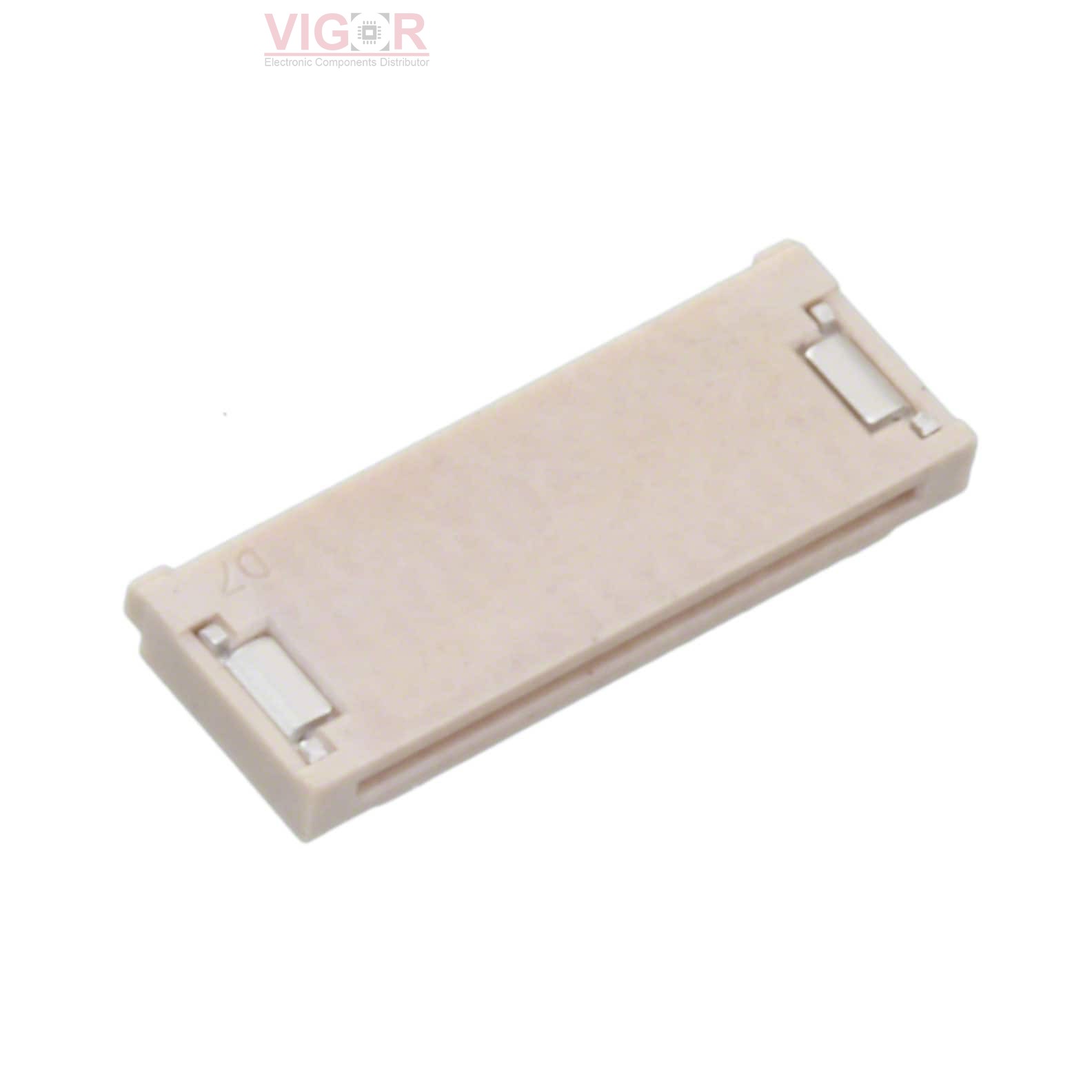

Product image
Product thumb
Part No :

0512811694

Manufacturer
Woodhead - Molex
VIGOR # :

3264083

Description
CONN FFC FPC 16POS 0.50MM R/A
Catalog
FFC, FPC (Flat Flexible) Connectors
DataSheet
0512811694 PDF
Country of origin
-
Date code
-
ads
0512811694 Specifications
Type Description
Series:51281
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Flat Flex Type:FFC, FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Top and Bottom
Number of Positions:16
Pitch:0.020" (0.50mm)
Termination:Solder
FFC, FCB Thickness:0.30mm
Height Above Board:0.047" (1.20mm)
Locking Feature:-
Cable End Type:Straight, Tapered
Contact Material:Phosphor Bronze
Contact Finish:Gold
Housing Material:Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material:-
Features:Solder Retention
Voltage Rating:50V
Operating Temperature:-20°C ~ 85°C
Material Flammability Rating:UL94 V-0
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 15062
Shipped from
HK warehouse
Expected Shipping Date
Dec 27 - Dec 31 2025
Pricing(USD)
Quantity Unit Price Ext. Price
1 $1.10 $1.10
3000 $0.68 $2 044.50
6000 $0.66 $3 948.00
9000 $0.63 $5 625.90
15000 $0.61 $9 165.00

Current price of 0512811694 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
5016165185

5016165185

CONN FPC TOP 51POS 0.30MM R/A

SFW22R-1STE1LF

SFW22R-1STE1LF

CONN FFC BOTTOM 22POS 1.00MM R/A

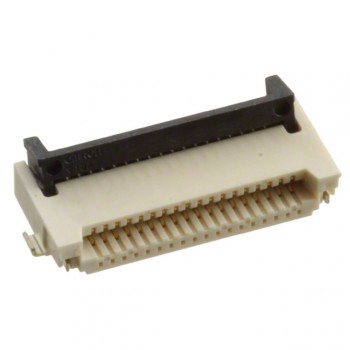

XF3M-1825-1B
