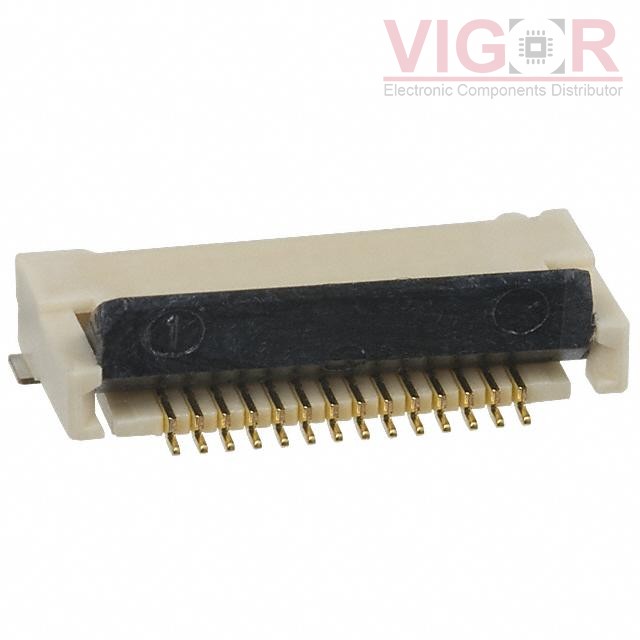

XF2M-2015-1A-R100

Part No :: XF2M-2015-1A-R100

Manufacturer: Omron Electronics Components

VIGOR # :: 3264097

Description: CONN FPC 20POS 0.50MM R/A

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: XF2M-2015-1A-R100 PDF

Country of origin: -

Date code: -

XF2M-2015-1A-R100 Specifications

Type	Description
Series:	XF2M
Package:	Strip
Part Status:	Active
Flat Flex Type:	FPC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Top and Bottom
Number of Positions:	20
Pitch:	0.020" (0.50mm)
Termination:	Solder
FFC, FCB Thickness:	0.30mm
Height Above Board:	0.083" (2.10mm)
Locking Feature:	Rotary Lock, Backlock
Cable End Type:	Tapered
Contact Material:	Copper Alloy
Contact Finish:	Gold
Housing Material:	Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material:	Liquid Crystal Polymer (LCP), Halogen Free
Features:	-
Voltage Rating:	50V
Operating Temperature:	-30°C ~ 85°C
Material Flammability Rating:	UL94 V-0

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 207

Shipped from

HK warehouse

Expected Shipping Date

Dec 27 - Dec 31 2025

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$3.09~~	~~$3.09~~
10	~~$2.97~~	~~$29.68~~
25	~~$2.72~~	~~$68.00~~
50	~~$2.60~~	~~$129.82~~
100	~~$2.47~~	~~$247.29~~
250	~~$2.16~~	~~$540.95~~
500	~~$2.10~~	~~$1 050.98~~
1000	~~$1.79~~	~~$1 792.84~~
2500	~~$1.79~~	~~$4 464.95~~

Current price of XF2M-2015-1A-R100 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
