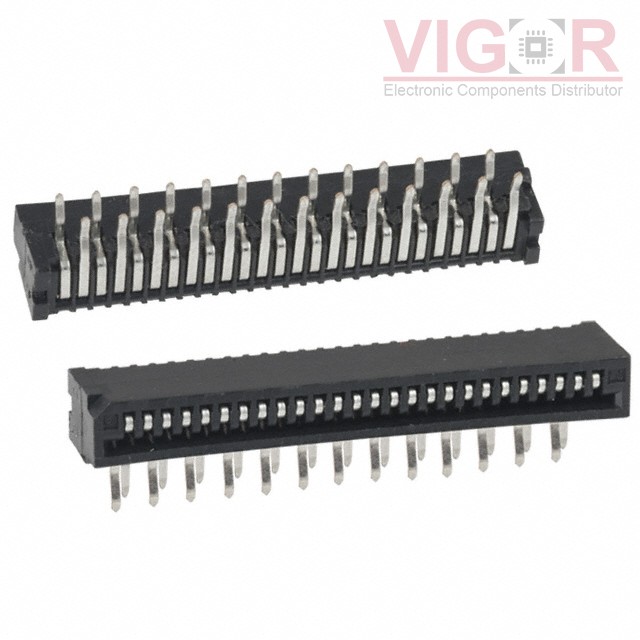

HLW26R-2C7LF

Part No :: HLW26R-2C7LF

Manufacturer: Storage & Server IO (Amphenol ICC)

VIGOR # :: 3264293

Description: CONN FFC FPC TOP 26POS 1MM R/A

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: HLW26R-2C7LF PDF

Current price of HLW26R-2C7LF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

HLW26R-2C7LF Specifications

Type	Description
Series:	HLW-R
Package:	Tray
Part Status:	Active
Flat Flex Type:	FFC, FPC
Mounting Type:	Through Hole, Right Angle
Connector/Contact Type:	Contacts, Top
Number of Positions:	26
Pitch:	0.039" (1.00mm)
Termination:	Kinked Pin
FFC, FCB Thickness:	0.30mm, 0.33mm
Height Above Board:	0.154" (3.90mm)
Locking Feature:	-
Cable End Type:	Straight, Tapered
Contact Material:	Phosphor Bronze
Contact Finish:	Tin
Housing Material:	Polybutylene Terephthalate (PBT), Glass Filled
Actuator Material:	-
Features:	-
Voltage Rating:	100V
Operating Temperature:	-55°C ~ 85°C
Material Flammability Rating:	UL94 V-0
