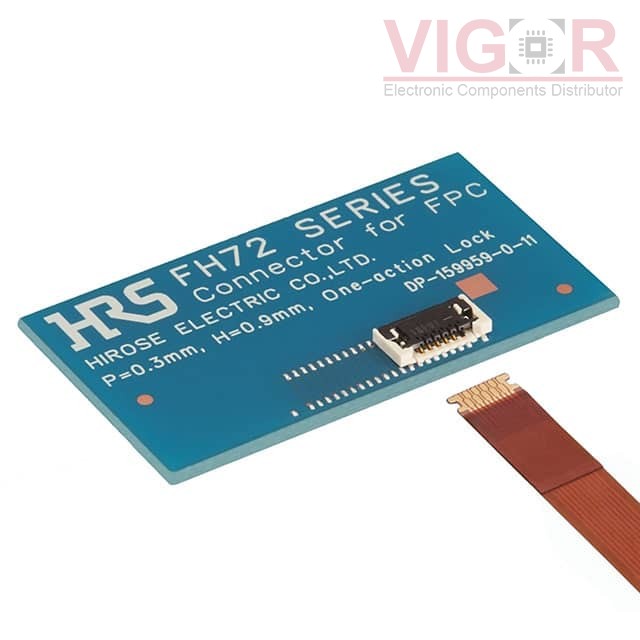

FH72-11S-0.3SHW

Part No :: FH72-11S-0.3SHW

Manufacturer: Hirose

VIGOR # :: 3264354

Description: ONE ACTION LOCK FPC CONNECTOR, T

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: FH72-11S-0.3SHW PDF

Current price of FH72-11S-0.3SHW is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FH72-11S-0.3SHW Specifications

Type	Description
Series:	FH72
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Flat Flex Type:	FPC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Top
Number of Positions:	11
Pitch:	0.012" (0.30mm)
Termination:	Solder
FFC, FCB Thickness:	0.20mm
Height Above Board:	0.035" (0.88mm)
Locking Feature:	Flip Lock
Cable End Type:	Notched
Contact Material:	Copper Alloy
Contact Finish:	Gold
Housing Material:	Liquid Crystal Polymer (LCP)
Actuator Material:	Polyamide (PA), Nylon
Features:	-
Voltage Rating:	30V
Operating Temperature:	-55°C ~ 85°C
Material Flammability Rating:	UL94 V-0
