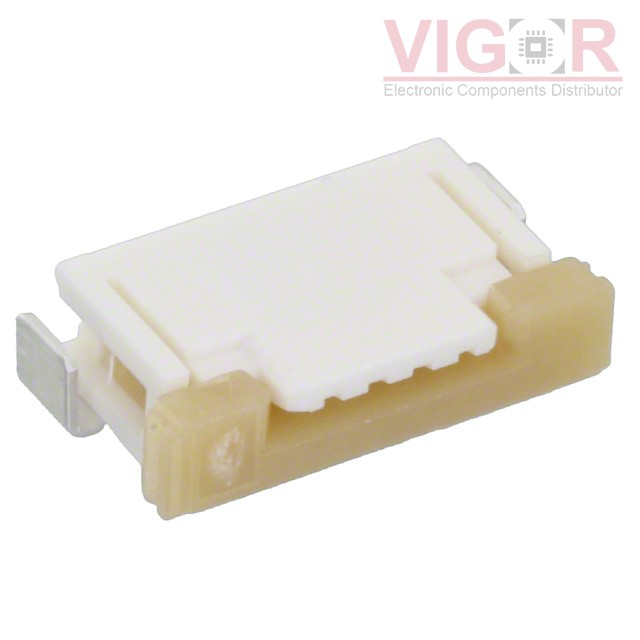

0522070433

Part No :: 0522070433

Manufacturer: Woodhead - Molex

VIGOR # :: 3264364

Description: CONN FFC FPC TOP 4POS 1.00MM R/A

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: 0522070433 PDF

Current price of 0522070433 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

0522070433 Specifications

Type	Description
Series:	Easy-On 52207
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Flat Flex Type:	FFC, FPC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Top
Number of Positions:	4
Pitch:	0.039" (1.00mm)
Termination:	Solder
FFC, FCB Thickness:	0.30mm
Height Above Board:	0.106" (2.70mm)
Locking Feature:	Slide Lock
Cable End Type:	Tapered
Contact Material:	Phosphor Bronze
Contact Finish:	Tin Bismuth
Housing Material:	Polyamide (PA), Nylon, Glass Filled
Actuator Material:	Polyphenylene Sulfide (PPS)
Features:	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating:	125V
Operating Temperature:	-40°C ~ 85°C
Material Flammability Rating:	UL94 V-0
