686114183522

686114183522

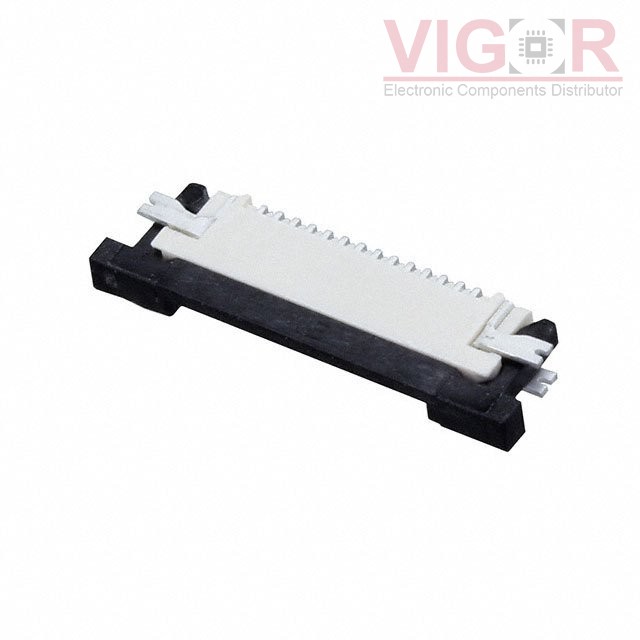

Image is for reference,
please contact us to get the real picture

Part No :

686114183522

Manufacturer
Würth Elektronik Midcom
Description
CONN FFC BTM 14POS 1MM SMD R/A
Catalog
FFC, FPC (Flat Flexible) Connectors
Shipped from
HK warehouse
Expected Shipping Date
Oct 30 - Nov 03 2025
DataSheet
686114183522 PDF
Availability
1040 pieces
Unit Price
$2.16000

Current price of 686114183522 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

686114183522 Specifications
Type Description
Series:WR-FPC
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Flat Flex Type:FFC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Bottom
Number of Positions:14
Pitch:0.039" (1.00mm)
Termination:Solder
FFC, FCB Thickness:0.30mm
Height Above Board:0.047" (1.20mm)
Locking Feature:Flip Lock
Cable End Type:Straight
Contact Material:Phosphor Bronze
Contact Finish:Tin
Housing Material:Liquid Crystal Polymer (LCP)
Actuator Material:Polyamide (PA6T), Nylon 6T
Features:Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating:-
Operating Temperature:-25°C ~ 85°C
Material Flammability Rating:UL94 V-0
