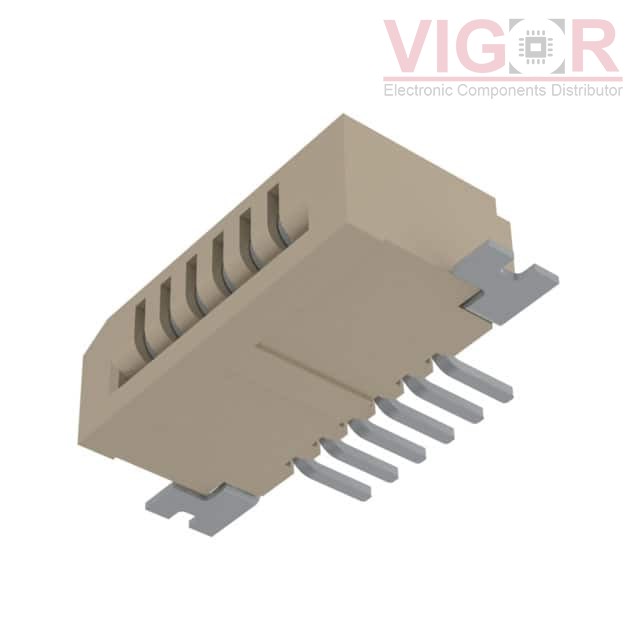

686106188622

Part No :: 686106188622

Manufacturer: Würth Elektronik Midcom

VIGOR # :: 3264445

Description: WR-FPC_1.00 MM SMT HORIZONTAL LI

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: 686106188622 PDF

Current price of 686106188622 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

686106188622 Specifications

Type	Description
Series:	WR-FPC
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Flat Flex Type:	FPC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Top
Number of Positions:	6
Pitch:	0.039" (1.00mm)
Termination:	Solder
FFC, FCB Thickness:	0.29mm ~ 0.34mm
Height Above Board:	0.122" (3.10mm)
Locking Feature:	-
Cable End Type:	Straight
Contact Material:	Phosphor Bronze
Contact Finish:	Tin
Housing Material:	Liquid Crystal Polymer (LCP)
Actuator Material:	-
Features:	Low Insertion Force (LIF), Solder Retention
Voltage Rating:	125V
Operating Temperature:	-25°C ~ 85°C
Material Flammability Rating:	UL94 V-0
