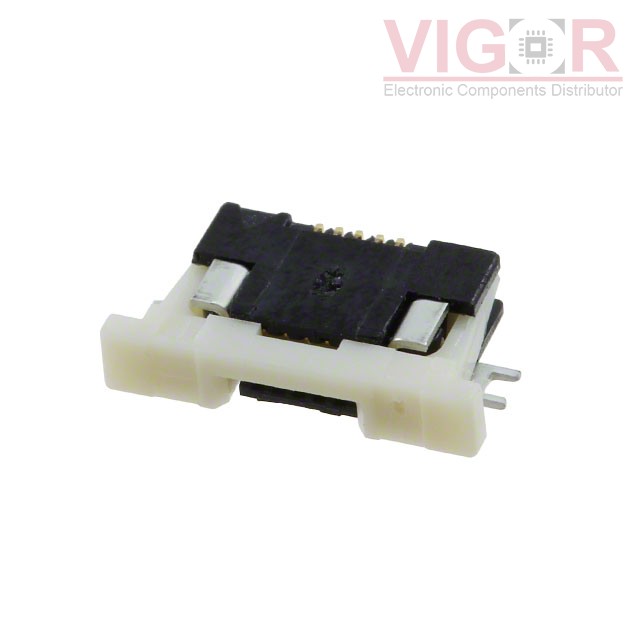

IL-FPR-5S-HF-N1

Part No :: IL-FPR-5S-HF-N1

Manufacturer: JAE Electronics

VIGOR # :: 4709493

Description: CONN FPC BOTTOM 5POS 0.50MM R/A

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: IL-FPR-5S-HF-N1 PDF

Current price of IL-FPR-5S-HF-N1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

IL-FPR-5S-HF-N1 Specifications

Type	Description
Series:	IL-FPR
Package:	Tray
Part Status:	Obsolete
Flat Flex Type:	FPC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Bottom
Number of Positions:	5
Pitch:	0.020" (0.50mm)
Termination:	Solder
FFC, FCB Thickness:	0.30mm
Height Above Board:	0.075" (1.90mm)
Locking Feature:	Slide Lock
Cable End Type:	Tapered
Contact Material:	Copper Alloy
Contact Finish:	Gold
Housing Material:	Polyphenylene Sulfide (PPS), Glass Filled
Actuator Material:	Polyphenylene Sulfide (PPS), Glass Filled
Features:	Zero Insertion Force (ZIF)
Voltage Rating:	50V
Operating Temperature:	-40°C ~ 85°C
Material Flammability Rating:	UL94 V-0
