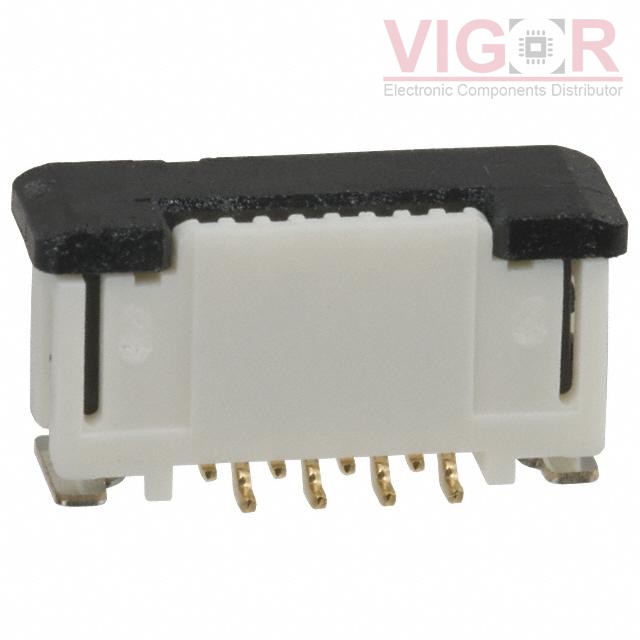

XF2J-0824-11A

Part No :: XF2J-0824-11A

Manufacturer: Omron Electronics Components

VIGOR # :: 4709520

Description: CONN FPC VERT 8POS 0.50MM SMD

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: XF2J-0824-11A PDF

Current price of XF2J-0824-11A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

XF2J-0824-11A Specifications

Type	Description
Series:	XF2J
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Flat Flex Type:	FPC
Mounting Type:	Surface Mount
Connector/Contact Type:	Contacts, Vertical - 1 Sided
Number of Positions:	8
Pitch:	0.020" (0.50mm)
Termination:	Solder
FFC, FCB Thickness:	0.30mm
Height Above Board:	0.163" (4.15mm)
Locking Feature:	Slide Lock
Cable End Type:	Tapered
Contact Material:	Copper Alloy
Contact Finish:	Gold
Housing Material:	Polyamide (PA46), Nylon 4/6
Actuator Material:	-
Features:	Zero Insertion Force (ZIF)
Voltage Rating:	50V
Operating Temperature:	-30°C ~ 85°C
Material Flammability Rating:	UL94 V-0
