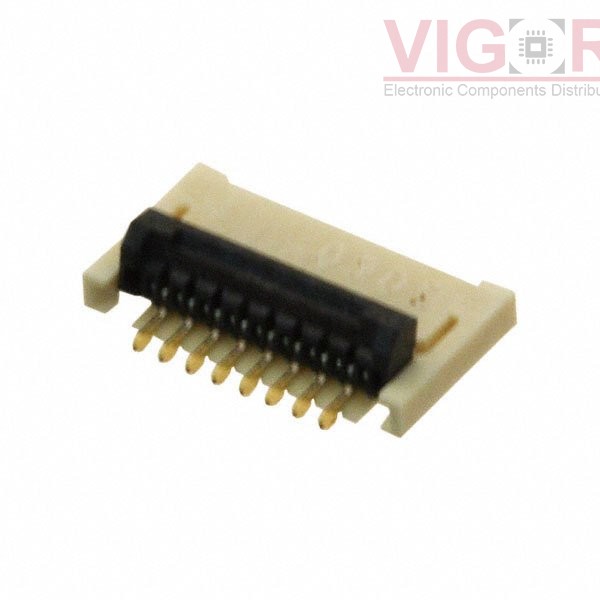

XF3C594541ABYOMZ

Part No :: XF3C594541ABYOMZ

Manufacturer: Omron Electronics Components

VIGOR # :: 4709544

Description: CONN FPC 59POS 0.25MM R/A

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: XF3C594541ABYOMZ PDF

Current price of XF3C594541ABYOMZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

XF3C594541ABYOMZ Specifications

Type	Description
Series:	XF3C
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Flat Flex Type:	FPC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Top and Bottom
Number of Positions:	59
Pitch:	0.010" (0.25mm)
Termination:	Solder
FFC, FCB Thickness:	0.12mm
Height Above Board:	0.033" (0.84mm)
Locking Feature:	Rotary Lock, Backlock
Cable End Type:	Straight
Contact Material:	Copper Alloy
Contact Finish:	Gold
Housing Material:	Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material:	Liquid Crystal Polymer (LCP), Halogen Free
Features:	-
Voltage Rating:	50V
Operating Temperature:	-30°C ~ 85°C
Material Flammability Rating:	UL94 V-0
