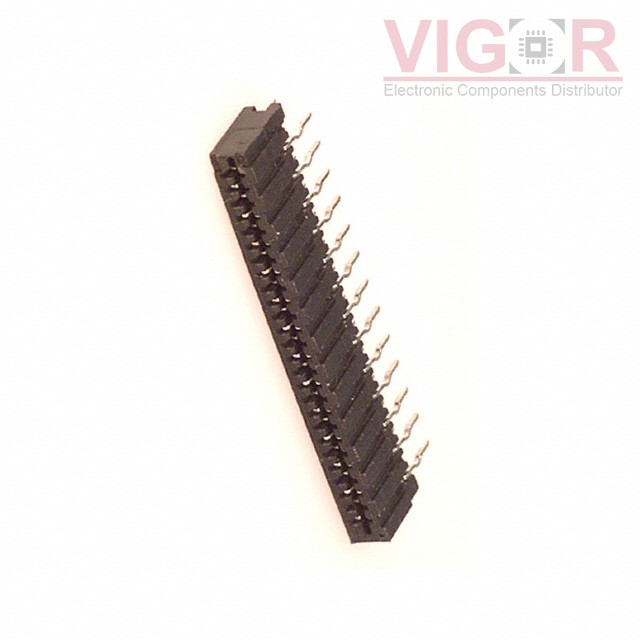

FH21-26S-1DSA

Part No :: FH21-26S-1DSA

Manufacturer: Hirose

VIGOR # :: 4709587

Description: CONN FFC FPC VERT 26POS 1MM PCB

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: FH21-26S-1DSA PDF

Current price of FH21-26S-1DSA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FH21-26S-1DSA Specifications

Type	Description
Series:	FH21
Package:	Bulk
Part Status:	Obsolete
Flat Flex Type:	FFC, FPC
Mounting Type:	Through Hole
Connector/Contact Type:	Contacts, Vertical - 2 Sided
Number of Positions:	26
Pitch:	0.039" (1.00mm)
Termination:	Kinked Pin
FFC, FCB Thickness:	0.30mm
Height Above Board:	0.228" (5.80mm)
Locking Feature:	-
Cable End Type:	Straight
Contact Material:	Phosphor Bronze
Contact Finish:	Solder Plating
Housing Material:	Polybutylene Terephthalate (PBT)
Actuator Material:	-
Features:	Low Insertion Force (LIF)
Voltage Rating:	50V
Operating Temperature:	-30°C ~ 70°C
Material Flammability Rating:	UL94 V-0
