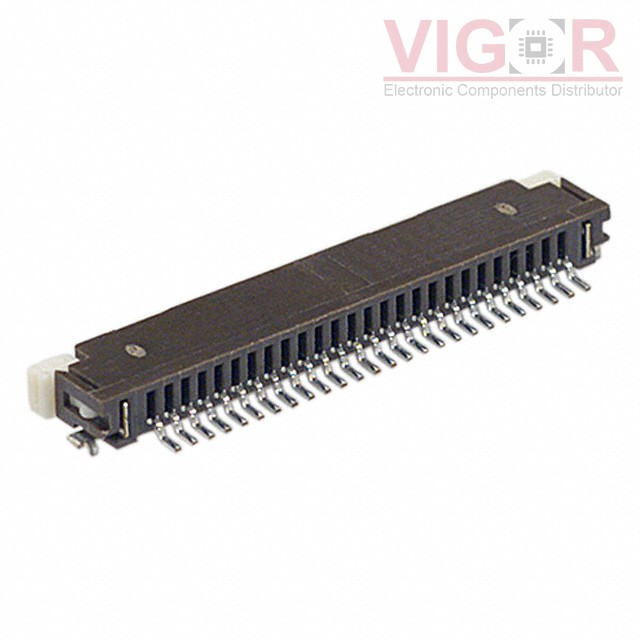

FH10A-26S-1SHB

Part No :: FH10A-26S-1SHB

Manufacturer: Hirose

VIGOR # :: 4709620

Description: CONN FFC FPC TOP 26POS 1MM R/A

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: FH10A-26S-1SHB PDF

Current price of FH10A-26S-1SHB is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FH10A-26S-1SHB Specifications

Type	Description
Series:	FH10A
Package:	Tube
Part Status:	Obsolete
Flat Flex Type:	FFC, FPC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Top
Number of Positions:	26
Pitch:	0.039" (1.00mm)
Termination:	Solder
FFC, FCB Thickness:	0.30mm
Height Above Board:	0.118" (3.00mm)
Locking Feature:	Slide Lock
Cable End Type:	Straight
Contact Material:	Phosphor Bronze
Contact Finish:	Solder Plating
Housing Material:	Polybutylene Terephthalate (PBT)
Actuator Material:	-
Features:	Board Guide, Zero Insertion Force (ZIF)
Voltage Rating:	50V
Operating Temperature:	-55°C ~ 85°C
Material Flammability Rating:	UL94 V-0
