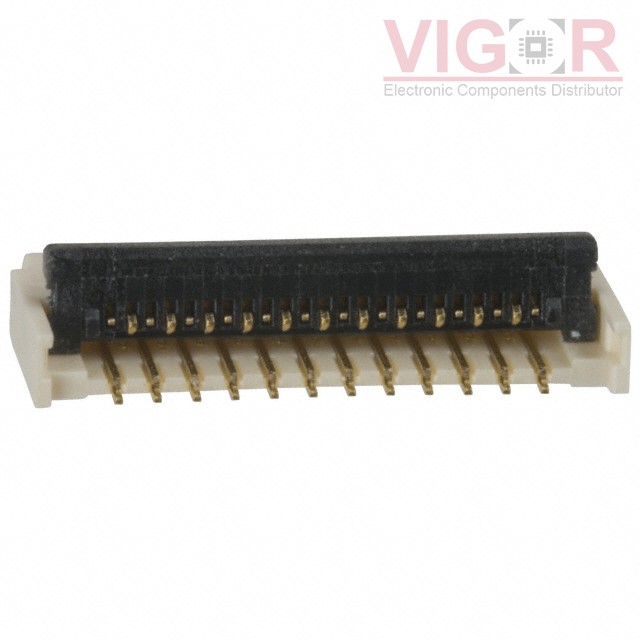

10017251-232240ELF

Part No :: 10017251-232240ELF

Manufacturer: Storage & Server IO (Amphenol ICC)

VIGOR # :: 4709674

Description: CONN FFC TOP 23POS 0.30MM R/A

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: 10017251-232240ELF PDF

Current price of 10017251-232240ELF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

10017251-232240ELF Specifications

Type	Description
Series:	SFYL-U
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Flat Flex Type:	FFC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Top
Number of Positions:	23
Pitch:	0.012" (0.30mm)
Termination:	Solder
FFC, FCB Thickness:	0.20mm
Height Above Board:	0.047" (1.20mm)
Locking Feature:	Flip Lock
Cable End Type:	Notched
Contact Material:	Copper Alloy
Contact Finish:	Gold
Housing Material:	Thermoplastic, Glass Filled
Actuator Material:	Thermoplastic
Features:	Low Insertion Force (LIF)
Voltage Rating:	200V
Operating Temperature:	-25°C ~ 85°C
Material Flammability Rating:	UL94 V-0
