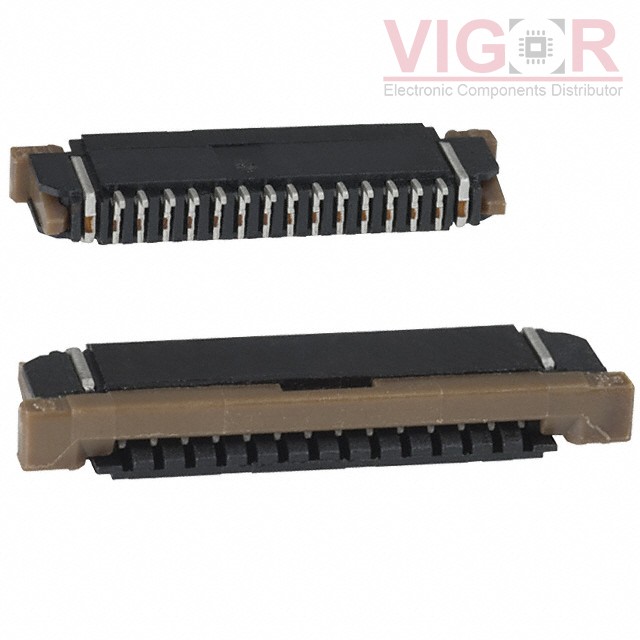

SFW14R-3STE1

Part No :: SFW14R-3STE1

Manufacturer: Storage & Server IO (Amphenol ICC)

VIGOR # :: 4709817

Description: CONN FFC BOTTOM 14POS 1.00MM R/A

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: SFW14R-3STE1 PDF

Country of origin: -

Date code: -

SFW14R-3STE1 Specifications

Type	Description
Series:	SFW-R
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Flat Flex Type:	FFC, FPC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Bottom
Number of Positions:	14
Pitch:	0.039" (1.00mm)
Termination:	Solder
FFC, FCB Thickness:	0.30mm, 0.33mm
Height Above Board:	0.106" (2.70mm)
Locking Feature:	Slide Lock
Cable End Type:	Notched
Contact Material:	Phosphor Bronze
Contact Finish:	Tin Alloy
Housing Material:	Polyphenylene Sulfide (PPS), Glass Filled
Actuator Material:	Polyphenylene Sulfide (PPS), Glass Filled
Features:	Zero Insertion Force (ZIF)
Voltage Rating:	-
Operating Temperature:	-
Material Flammability Rating:	UL94 V-0
