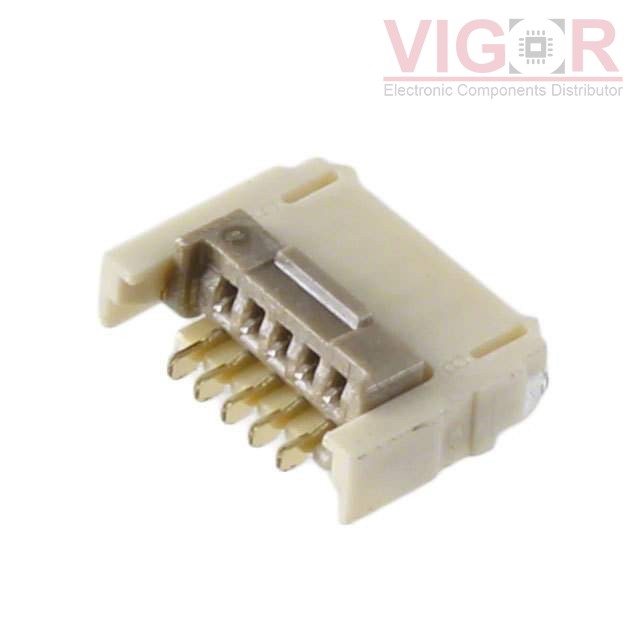

XF2W05151AR100

Part No :: XF2W05151AR100

Manufacturer: Omron Electronics Components

VIGOR # :: 4710058

Description: CONN FPC 5POS 0.50MM R/A

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: XF2W05151AR100 PDF

Country of origin: -

Date code: -

XF2W05151AR100 Specifications

Type	Description
Series:	XF2W
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Flat Flex Type:	FPC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Top and Bottom
Number of Positions:	5
Pitch:	0.020" (0.50mm)
Termination:	Solder
FFC, FCB Thickness:	0.30mm
Height Above Board:	0.044" (1.12mm)
Locking Feature:	Rotary Lock, Backlock
Cable End Type:	Tapered
Contact Material:	Copper Alloy
Contact Finish:	Gold
Housing Material:	Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material:	Liquid Crystal Polymer (LCP), Halogen Free
Features:	-
Voltage Rating:	50V
Operating Temperature:	-30°C ~ 85°C
Material Flammability Rating:	UL94 V-0

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Feb 01 - Feb 05 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of XF2W05151AR100 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

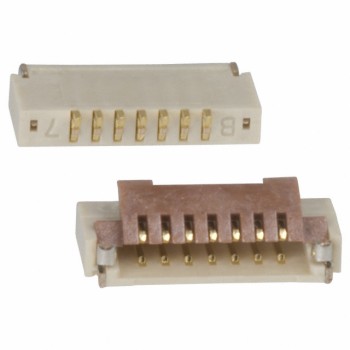

FH19C-7S-0.5SH(05)

CONN FFC BOTTOM 7POS 0.50MM R/A

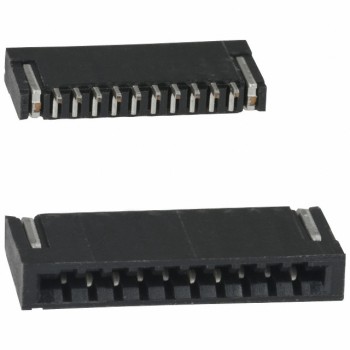

HFW10R-1STE1

CONN FFC BOTTOM 10POS 1.00MM R/A

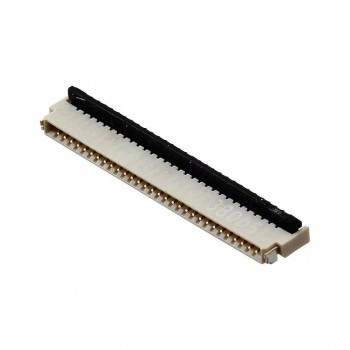

FH34SJ-30S-0.5SH(50)
