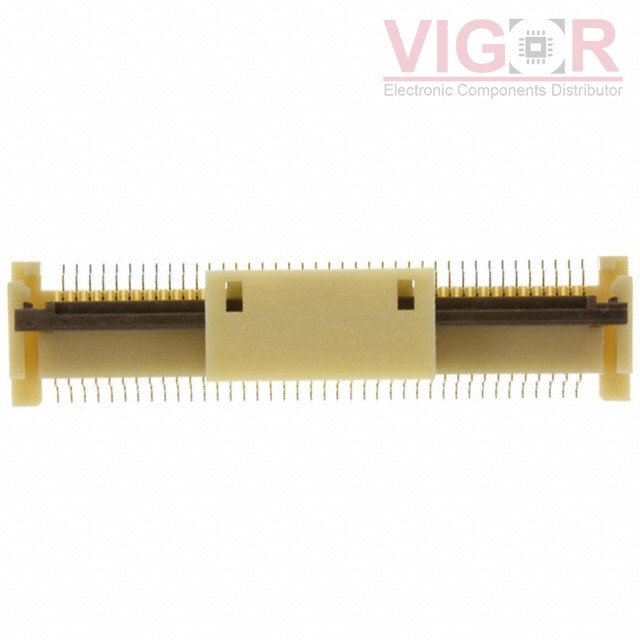

FH16-80S-0.3SHW(05)

Part No :: FH16-80S-0.3SHW(05)

Manufacturer: Hirose

VIGOR # :: 4710085

Description: CONN FPC BOTTOM 80POS 0.30MM R/A

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: FH16-80S-0.3SHW(05) PDF

Country of origin: -

Date code: -

FH16-80S-0.3SHW(05) Specifications

Type	Description
Series:	FH16
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Flat Flex Type:	FPC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Bottom
Number of Positions:	80
Pitch:	0.012" (0.30mm)
Termination:	Solder
FFC, FCB Thickness:	0.30mm
Height Above Board:	0.118" (3.00mm)
Locking Feature:	Flip Lock
Cable End Type:	Tabbed
Contact Material:	Phosphor Bronze
Contact Finish:	Gold
Housing Material:	Liquid Crystal Polymer (LCP), Polyamide (PA), Nylon
Actuator Material:	Polyphenylene Sulfide (PPS)
Features:	Pick and Place Cap, Zero Insertion Force (ZIF)
Voltage Rating:	30V
Operating Temperature:	-40°C ~ 70°C
Material Flammability Rating:	UL94 V-0
