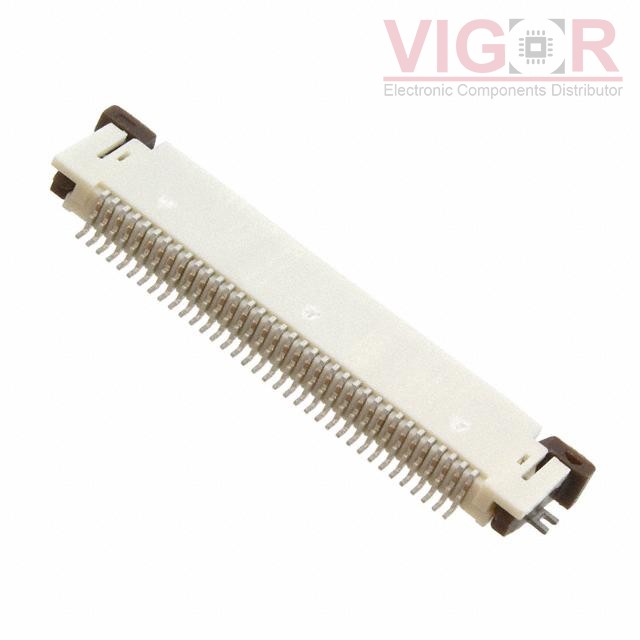

| Type | Description |
|---|---|
| Series: | Easy-On 54104 |
| Package: | Tape & Reel (TR)Cut Tape (CT) |
| Part Status: | Obsolete |
| Flat Flex Type: | FFC, FPC |
| Mounting Type: | Surface Mount, Right Angle |
| Connector/Contact Type: | Contacts, Top |
| Number of Positions: | 36 |
| Pitch: | 0.020" (0.50mm) |
| Termination: | Solder |
| FFC, FCB Thickness: | 0.30mm |
| Height Above Board: | 0.079" (2.00mm) |
| Locking Feature: | Slide Lock |
| Cable End Type: | Straight, Tapered |
| Contact Material: | Phosphor Bronze |
| Contact Finish: | Tin Bismuth |
| Housing Material: | Polyamide (PA46), Nylon 4/6 |
| Actuator Material: | Polyphenylene Sulfide (PPS), Glass Filled |
| Features: | Solder Retention, Zero Insertion Force (ZIF) |
| Voltage Rating: | 50V |
| Operating Temperature: | -20°C ~ 85°C |
| Material Flammability Rating: | UL94 V-0 |
| Quantity | Unit Price | Ext. Price |
|---|
Current price of 0541043696 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

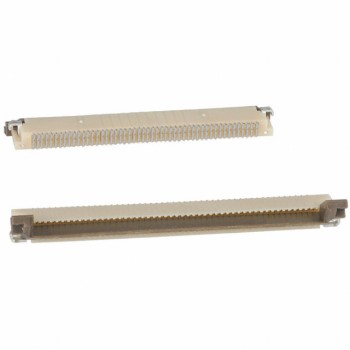

CONN FFC TOP 50POS 0.50MM R/A

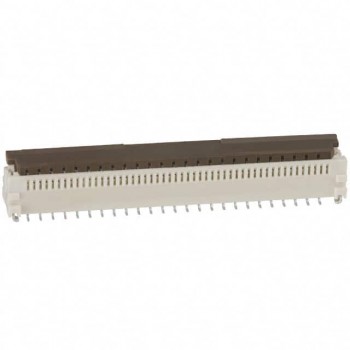

CONN FFC VERT 50POS 0.50MM SMD
