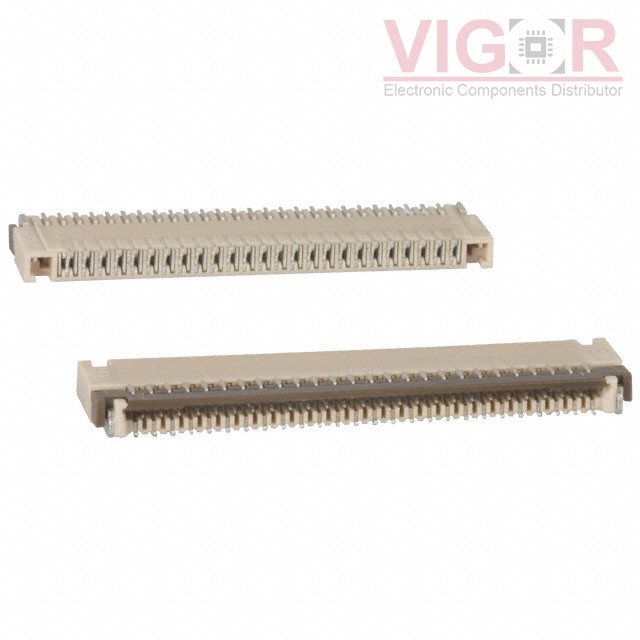

| Type | Description |
|---|---|
| Series: | Easy-On 54809 |
| Package: | Tape & Reel (TR) |
| Part Status: | Obsolete |
| Flat Flex Type: | FPC |
| Mounting Type: | Surface Mount, Right Angle |
| Connector/Contact Type: | Contacts, Bottom |
| Number of Positions: | 51 |
| Pitch: | 0.012" (0.30mm) |
| Termination: | Solder |
| FFC, FCB Thickness: | 0.20mm |
| Height Above Board: | 0.051" (1.30mm) |
| Locking Feature: | Flip Lock |
| Cable End Type: | Tapered |
| Contact Material: | Phosphor Bronze |
| Contact Finish: | Tin Bismuth |
| Housing Material: | Liquid Crystal Polymer (LCP) |
| Actuator Material: | Polyamide (PA46), Nylon 4/6 |
| Features: | Solder Retention, Zero Insertion Force (ZIF) |
| Voltage Rating: | 50V |
| Operating Temperature: | -20°C ~ 85°C |
| Material Flammability Rating: | UL94 V-0 |
| Quantity | Unit Price | Ext. Price |
|---|
Current price of 0548095198 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

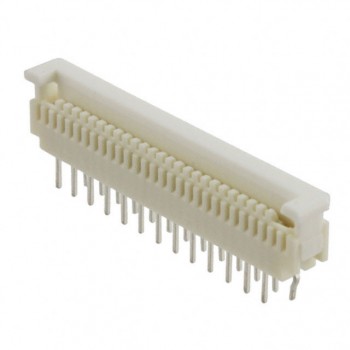

CONN FPC VERT 26POS 1.00MM PCB
CONN FPC TOP 30POS 0.50MM R/A

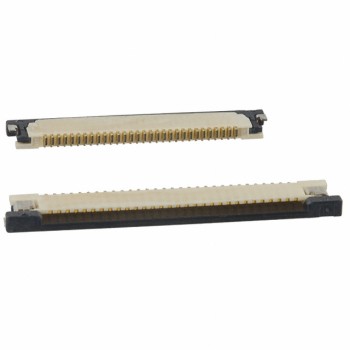

CONN FFC VERT 30POS 0.50MM SMD
