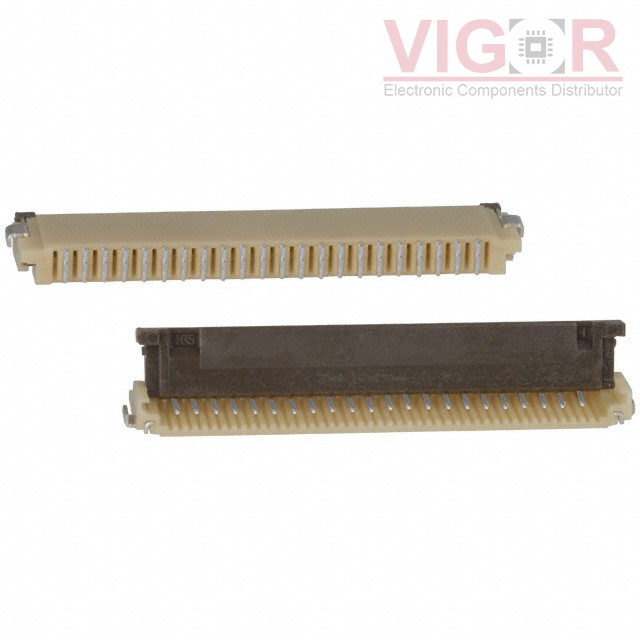

FH12-22S-1SH

Part No :: FH12-22S-1SH

Manufacturer: Hirose

VIGOR # :: 4710288

Description: CONN FFC BOTTOM 22POS 1.00MM R/A

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: FH12-22S-1SH PDF

Country of origin: -

Date code: -

FH12-22S-1SH Specifications

Type	Description
Series:	FH12
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Flat Flex Type:	FFC, FPC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Bottom
Number of Positions:	22
Pitch:	0.039" (1.00mm)
Termination:	Solder
FFC, FCB Thickness:	0.30mm
Height Above Board:	0.079" (2.00mm)
Locking Feature:	Flip Lock
Cable End Type:	Straight
Contact Material:	Phosphor Bronze
Contact Finish:	Tin-Lead
Housing Material:	Polyamide (PA), Nylon
Actuator Material:	Polyphenylene Sulfide (PPS)
Features:	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating:	50V
Operating Temperature:	-40°C ~ 85°C
Material Flammability Rating:	UL94 V-0
