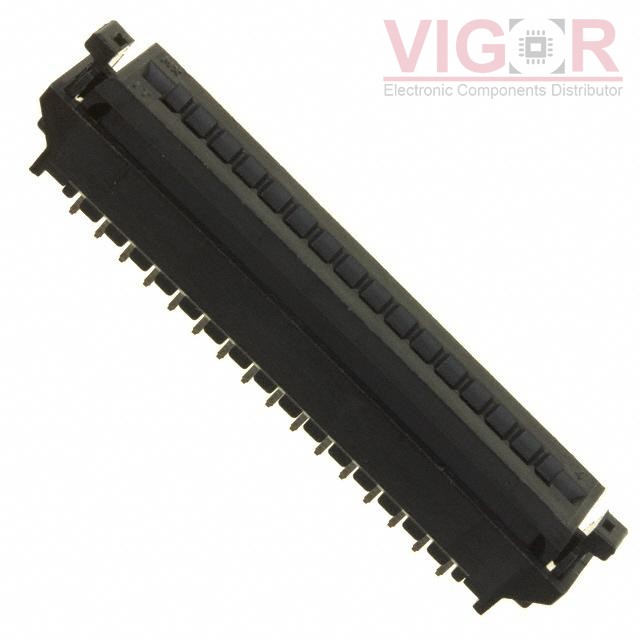

0905003016

Part No :: 0905003016

Manufacturer: Woodhead - Molex

VIGOR # :: 4710832

Description: CONN FFC VERT 16POS 2.54MM PCB

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: 0905003016 PDF

Country of origin: -

Date code: -

0905003016 Specifications

Type	Description
Series:	90500
Package:	Tube
Part Status:	Obsolete
Flat Flex Type:	FFC
Mounting Type:	Through Hole
Connector/Contact Type:	Contacts, Vertical - 2 Sided
Number of Positions:	16
Pitch:	0.100" (2.54mm)
Termination:	Solder
FFC, FCB Thickness:	0.20mm
Height Above Board:	0.346" (8.80mm)
Locking Feature:	Slide Lock
Cable End Type:	Notched
Contact Material:	Phosphor Bronze
Contact Finish:	Tin
Housing Material:	Polybutylene Terephthalate (PBT), Glass Filled
Actuator Material:	Polybutylene Terephthalate (PBT), Glass Filled
Features:	Zero Insertion Force (ZIF)
Voltage Rating:	250V
Operating Temperature:	-40°C ~ 85°C
Material Flammability Rating:	UL94 V-0

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Oct 23 - Oct 27 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of 0905003016 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

5016162975

CONN FPC TOP 29POS 0.30MM R/A

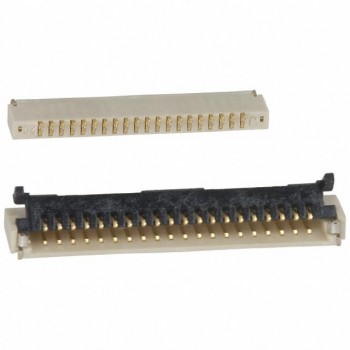

FH19S-20S-0.5SH(05)

CONN FFC BOTTOM 20POS 0.50MM R/A

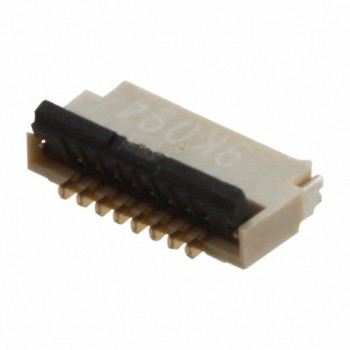

FH34S-8S-0.5SH(50)
