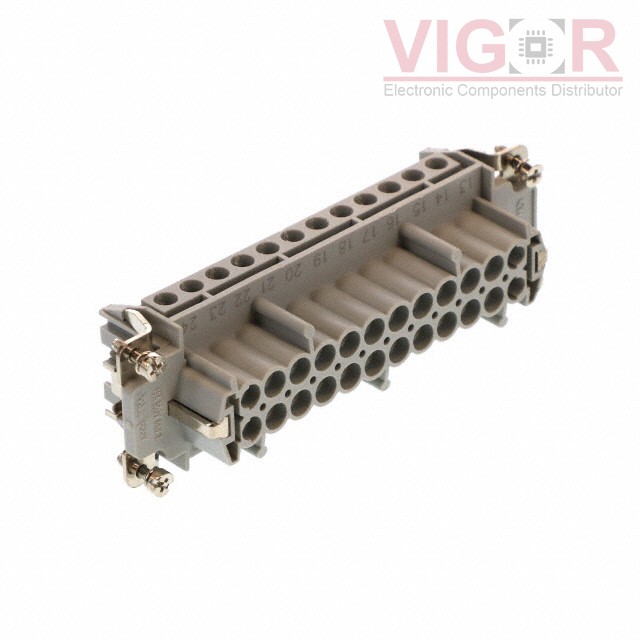

0936010299

Part No :: 0936010299

Manufacturer: Woodhead - Molex

VIGOR # :: 3216165

Description: 24B SEST F INS SCRW 24P 16A 500V

Catalog: Heavy Duty Connectors - Inserts, Modules

DataSheet: 0936010299 PDF

Country of origin: -

Date code: -

0936010299 Specifications

Type	Description
Series:	GWconnect S-EST
Package:	Bulk
Part Status:	Active
Connector Type:	Insert
Gender:	Female
Number of Positions:	24+Ground
Size:	24B
Termination Style:	Screw
Voltage Rating:	500V
Current Rating (Amps):	16A
Contact Type:	-
Operating Temperature:	-40°C ~ 125°C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 16

Shipped from

HK warehouse

Expected Shipping Date

Feb 09 - Feb 13 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$16.13~~	~~$16.13~~
10	~~$14.66~~	~~$146.62~~
25	~~$14.30~~	~~$357.38~~
50	~~$13.20~~	~~$659.78~~
100	~~$12.46~~	~~$1 246.25~~
250	~~$11.36~~	~~$2 840.71~~
500	~~$10.63~~	~~$5 314.88~~
1000	~~$9.75~~	~~$9 750.05~~

Current price of 0936010299 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

1651360000

INSERT FEMALE 10+2POS+1GND SCREW

T2580011154-000

PIN-Q1-M

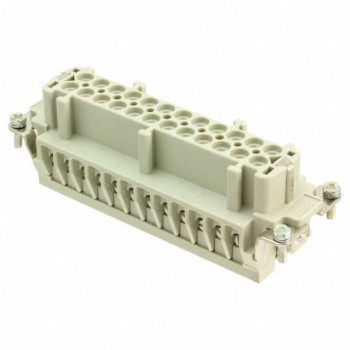

09330242789
